MAN0577-03-en

Page 93 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

A.9.

DNM_Task Timeout Counter

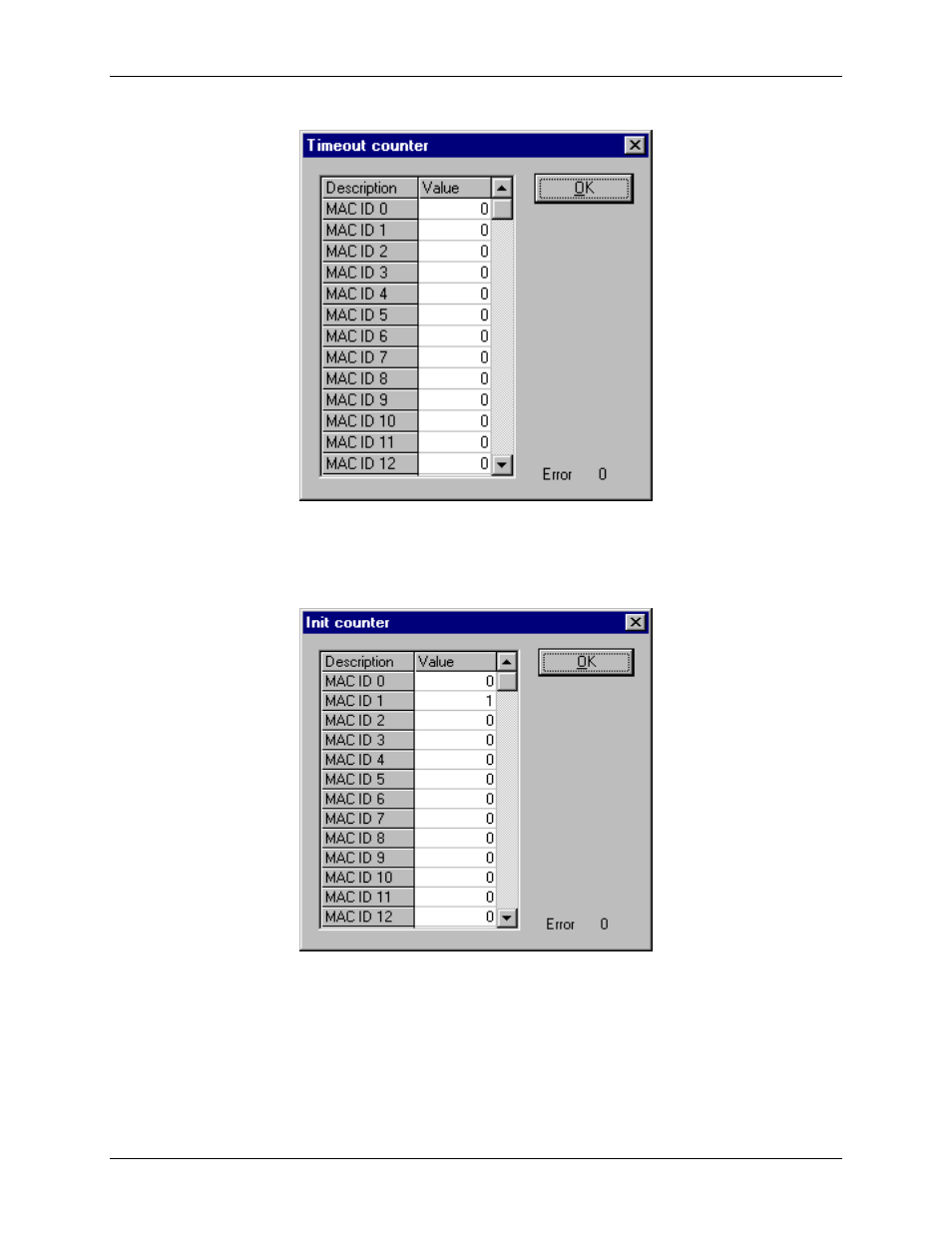

Figure 54: DNM_Task Timeout Counter

The Timeout Counter shows the number of timeouts for each Slave device configured in the DeviceNet
bus system.

A.10. DNM_Task Init Counter

Figure 55: DNM_Task Init Counter

The Device init counter is incremented whenever the Slave device is initialized. Normally the counter
must show the value 1 for each configured Slave, but if a Slave is detected as inactive during the
diagnostic procedure, then the Master tries to reinitialize the Slave again. If this happens the Slave init
counter is incremented by a value of 1. So values larger then 1 are an indication for communication error
to the corresponding Slave.
