MAN0577-03-en

Page 48 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

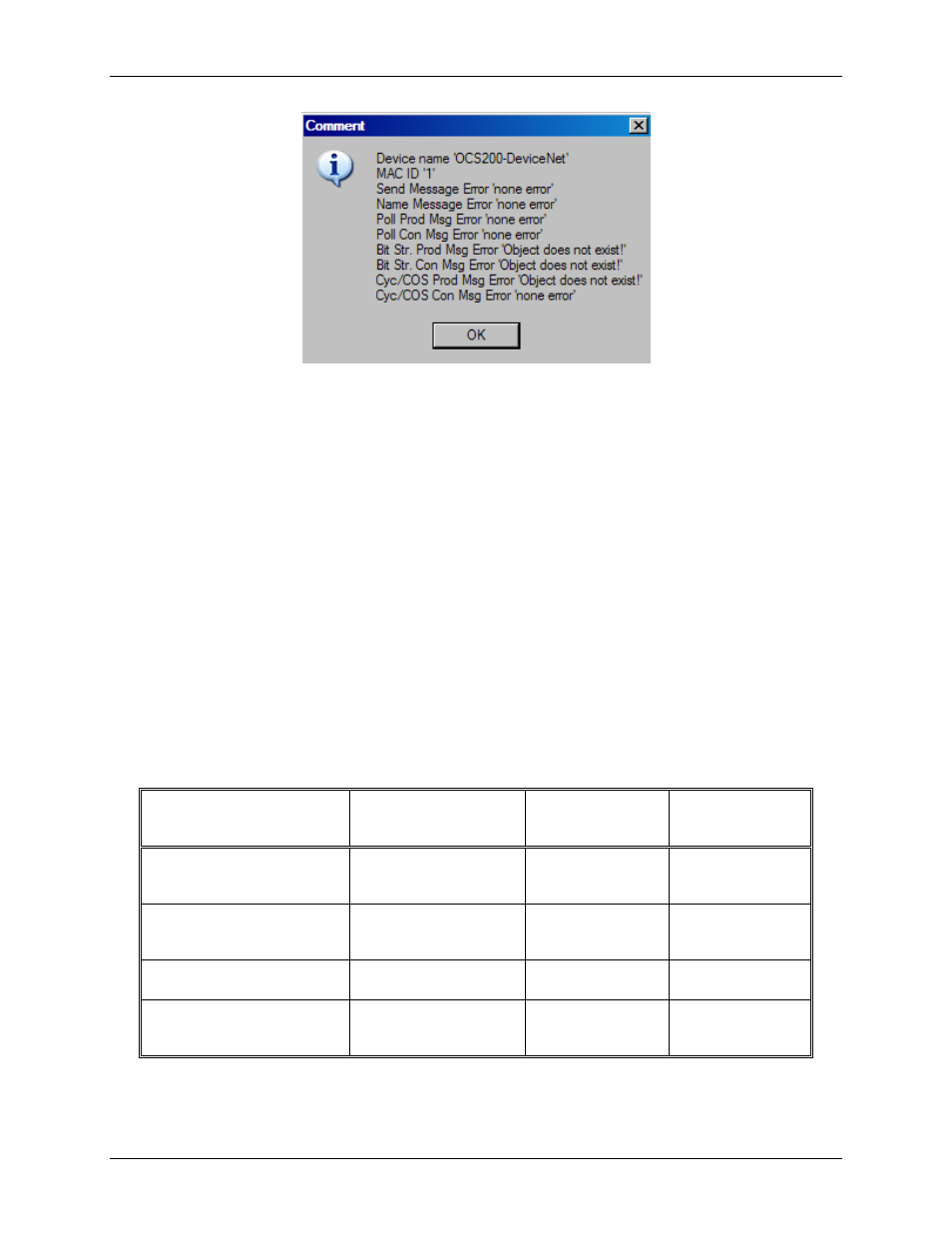

Figure 26: Information on a device in the automatic scan window

If this configuration is the required one, click on Automatic Configuration and select Yes when
prompted. Afterwards the Automatic Configuration Window can be closed by clicking on Close. If the
devices that were found in the configuration are not required, just click Close.
To manually insert the devices, please go on with section Insert Device (Slave)

on page 24.



6.8. Start/Stop Communication

First the desired Master must be chosen with a left mouse click on the symbol of the Master. The
communication between the DeviceNet Master and the DeviceNet Slaves can be manually started or
stopped. In order to do this select the Online > Communication start or Online > Communication stop
menu.


6.9. Diagnostic Functions

The following table shows Diagnostic Functions and their using for
• Horner DeviceNet Master devices
• Horner DeviceNet Slaves

Diagnostic Functions

Using

Usable for Horner
DeviceNet Masters
devices

Usable for Horner
DeviceNet Slave
devices

Live List

Detects, which devices
are connected to the
Horner DeviceNet Master

Yes

No, only for Horner
Master devices

Debug Mode

Detects, to which
DeviceNet Slaves the
Master has a connection

Yes

No, only for Horner
Master devices

Global State Field

State information of the
Horner DeviceNet Master

Yes

No, only for Horner
Master devices

Extended Device Diagnostic

Statistic information and
state information from the
Horner DeviceNet device

Yes Yes

Table 11: Overview Diagnostic Functions
