MAN0577-03-en

Page 35 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

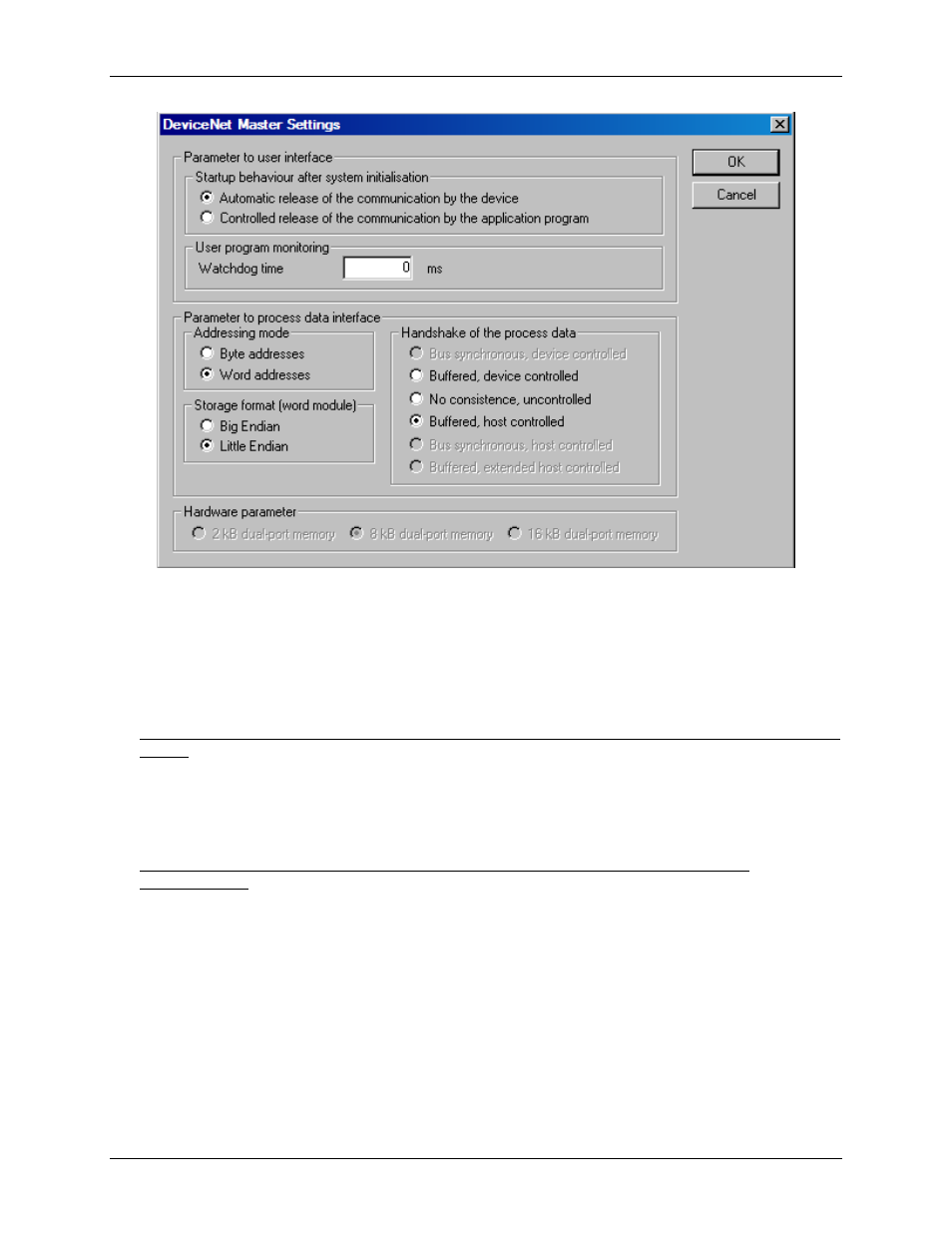

Figure 10: Settings > Master Settings

Startup behaviour after system initialization

If Automatic release of the communication by the device is selected, the Master starts with the
data transfer on the bus when initialisation is finished. If Controlled release of the communication
by the application program
is selected, the user has to start the data transfer on the bus, by a
defined release procedure.

Note: The HE800DNM650 must be set to Automatic release of the communication by the
device

User program monitoring

The watchdog time appointed defines how long the device will wait for a user trigger of the software
watchdog if started once, until it resets all outputs of the device to zero. This procedure must be
activated by the user application and is not started automatically.
Note: This is not a special DeviceNet function. Watchdog Time must be set to 0 for
HE800DNM650

Addressing mode

The addressing mode of the process data defines, how to interpret the addresses of the process
image. Possibilities are Byte addresses or Word addresses. See details next page.

Storage format (word module)

The storage format fixes the format, how the data is placed and interpreted in the process images.
For the data type word the Little Endian format and Big Endian format can be selected.
