MAN0577-03-en

Page 17 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

Select the CONFIG button adjacent to the module. Then select the MODULE SETUP tab.

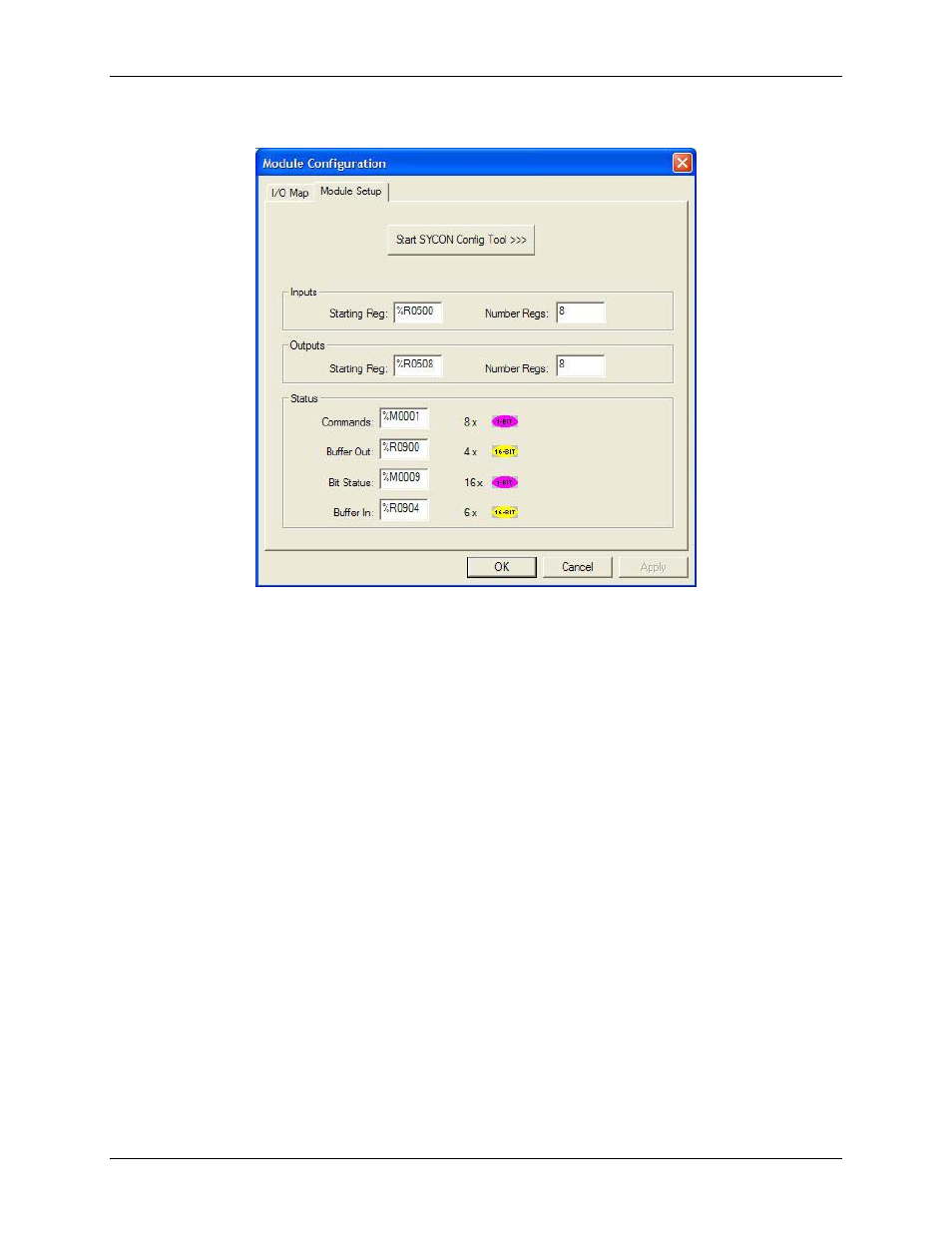

Figure 3.5

Configure the Inputs and Outputs.

NOTE:

INPUTS:
means data coming FROM the Network VIA the DNM/DNS Module to the OCS Registers.

OUTPUTS:
means data going TO the NETWORK VIA the DNM/DNS Module from the OCS Registers.

In Figure 3.5 above, For both Inputs and Outputs, 8 %R registers are used. The OCS %R registers are
retentive, general purpose, 16 bit registers.
