MAN0577-03-en

Page 32 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

CHAPTER 5: SETTINGS


5.1 Device

Assignment

The Device Assignment setting determines how the System Configurator communicates with the device.
This is set in the device arrangement via the menu Settings > Device Assignment. The following
possibilities are available:

CIF Device Driver

CIF Serial Driver

CIF TCP/IP Driver

CIF Device Driver:

• Not supported do not choose this driver.

CIF Serial Driver:

• CIF Serial Driver: The HSycon Configurator communicates with the SmartStack device over a serial

connection. In this case a COM interface of the PC must be connected via a cable (straight) with the
diagnostic interface of the SmartStack device. The cable is standard Horner Programming cable.

CIF TCP/IP Driver:

• Not supported. Do not choose this driver.


5.2 COM

Serial

Driver


The serial driver supports COM1 to COM 4, in order to communicate via the diagnostic interface with the
device. The Device is selected via Settings > Device Assignment.

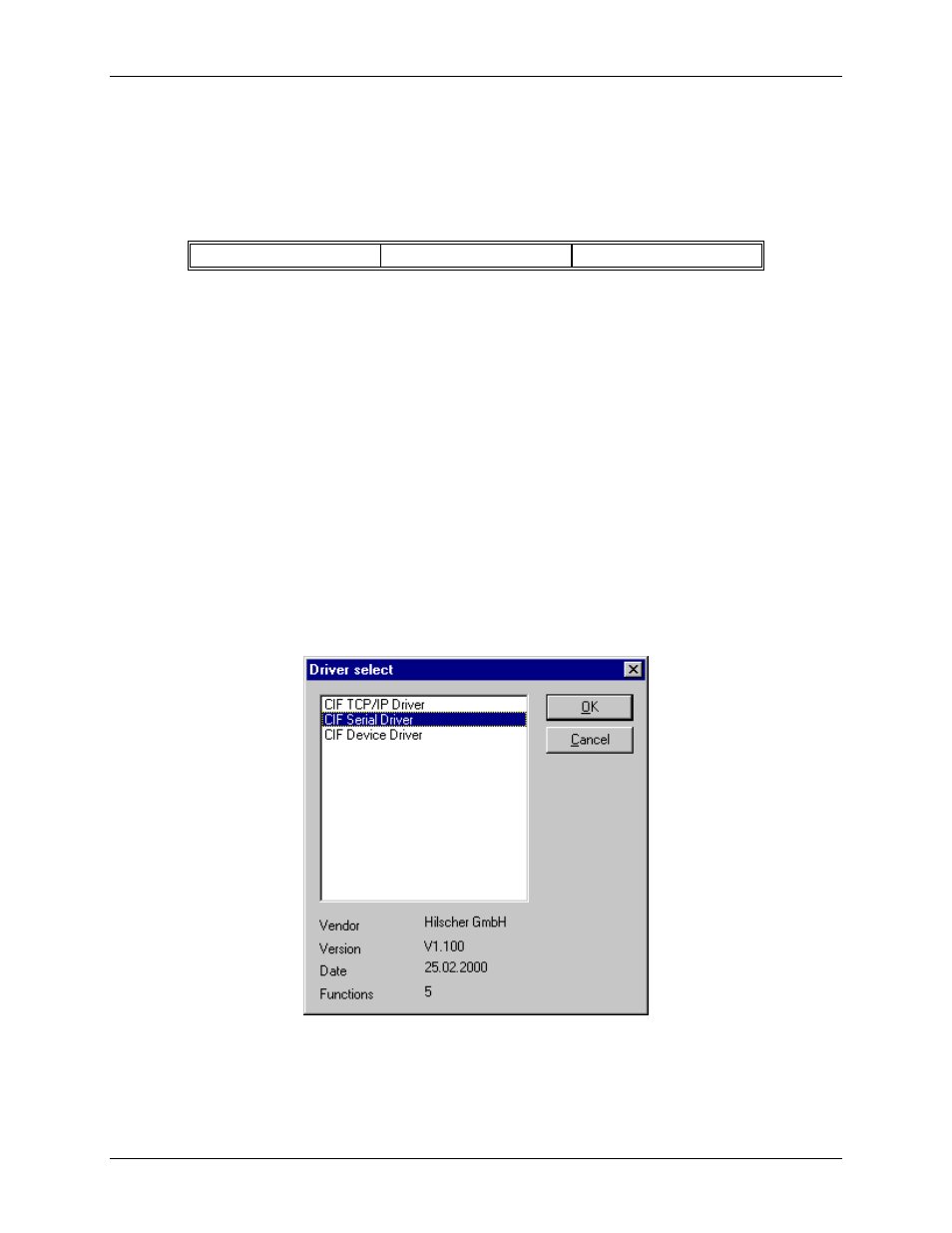

Figure 6: Driver selection > CIF Serial Driver

Choose the CIF Serial Driver and then OK, in order to select the CIF Serial Driver.
