MAN0577-03-en

Page 88 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

APPENDIX:

A. EXTENDED DEVICE DIAGNOSTIC MASTER

On the following pages the task state structures of the DeviceNet Master are described.

A.1. PLC_TASK

Common

Variables

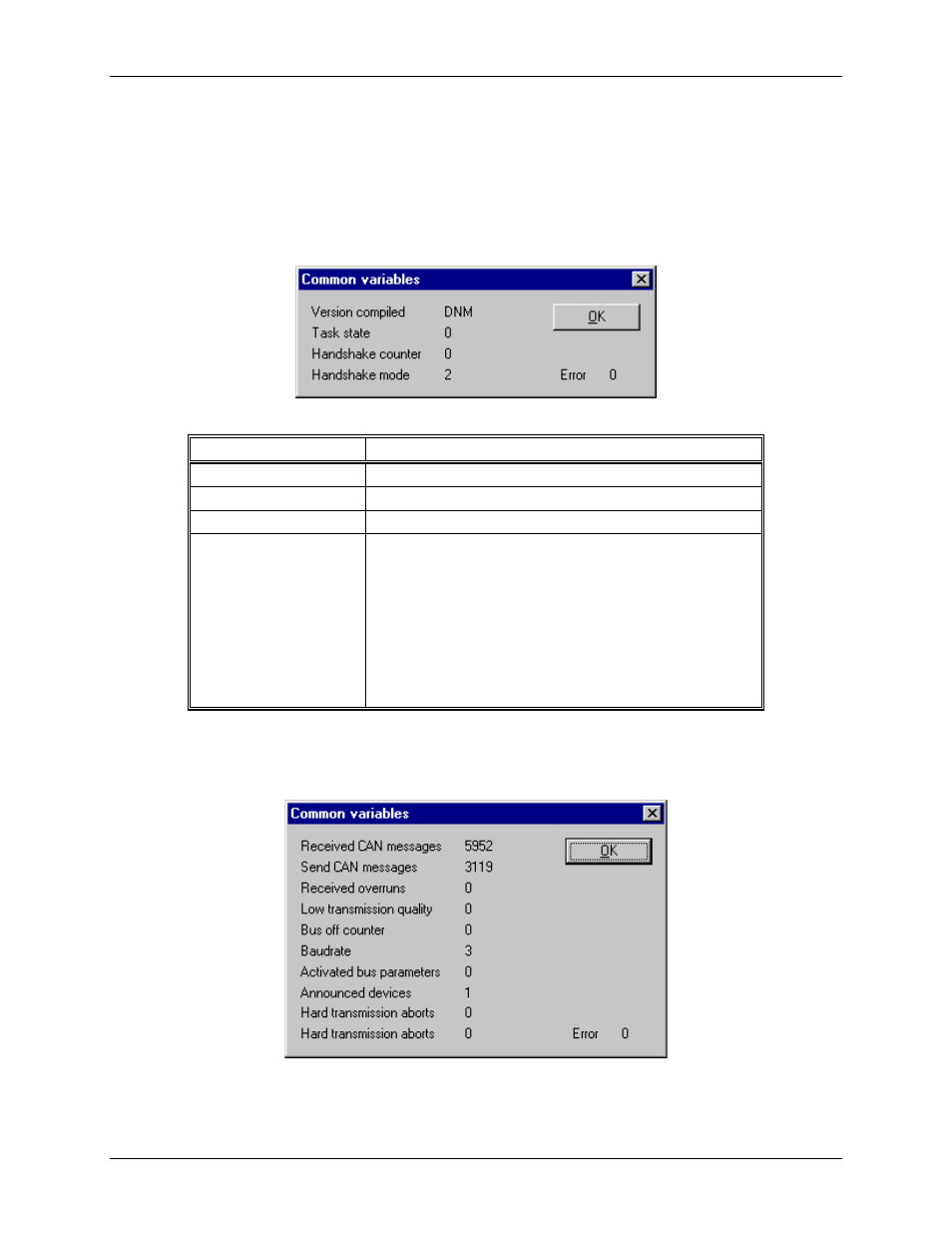

Figure 47: PLC_TASK Common Variables

Variable Meaning

Version Compiled

Hardware

Task State

Task State

Handshake Counter

Counter for the performed process data handshakes

Handshake Mode

This value represents the actual handshake mode between
application and CIF.
0 = Bus synchonous, Device Controlled
1 = Buffered, Device Controlled
2 = No consistence, Uncontrolled
3 = Buffered, Host Controlled
4 = Bus synchonous, Host Controlled
5 = Buffered, extended host controlled

Table 43: PLC_TASK Common Variables


A.2. DNM_TASK

Common

Variables

Figure 48: DNM_TASK Common Variables
