6.7. Automatic Network Scan

After the Master device is configured, it is possible to scan the DeviceNet network for other devices
(automatic network scan). This allows a very fast configuration, and detailed parameters for these devices
can be changed later.
To start an automatic network scan, please proceed as followed:
1. Create a new project: Select the menu File > New and DeviceNet.

2. Select a Master: The Master is selected with the menu Insert > Master

3. Click

on

Settings > Bus parameters and select the baudrate and the MAC ID from the Master

(explained in section

Bus Parameter

on page 34)

4. Select

Online > Download to load these settings into the DeviceNet Master.

5. Save: With the menu File > Save the so far set settings are saved.

6. Click on the Master and choose Online > Automatic Network Scan

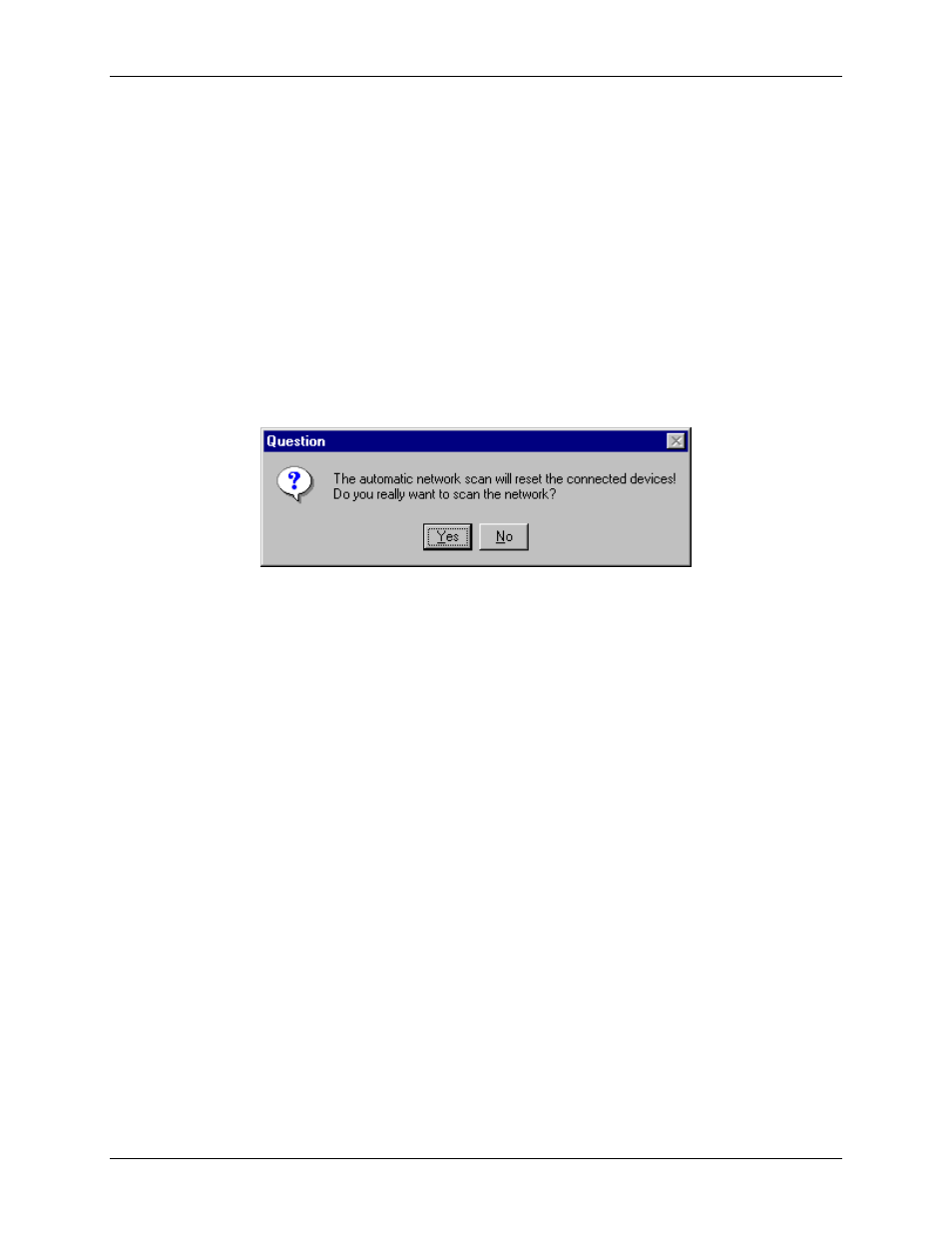

Figure 23: Online > Automatic Network Scan (Security question)
