DeviceNet Modules

HE800DNM650 & HE800DNS600

CHAPTER 6: ONLINE FUNCTIONS


6.1. Introduction

In this section all the functions that directly affect the Horner DeviceNet Modules are described, e.g.
HE800DNS600 and HE800DNM650.

Note: This will permit interruption of Devicenet communication and outputs can be switched ON or OFF.

6.2. Online to the Module

First, the desired device must be chosen for downloading by a left mouse click on the symbol of the
device.


6.3. Downloading the Configuration

In order to release the configuration and network access, a transfer (Download) to the DNM/DNS devices
must be carried out on the Online > Download menu. A warning will appear that the communication on
the DeviceNet will be interrupted. This warning must be confirmed.

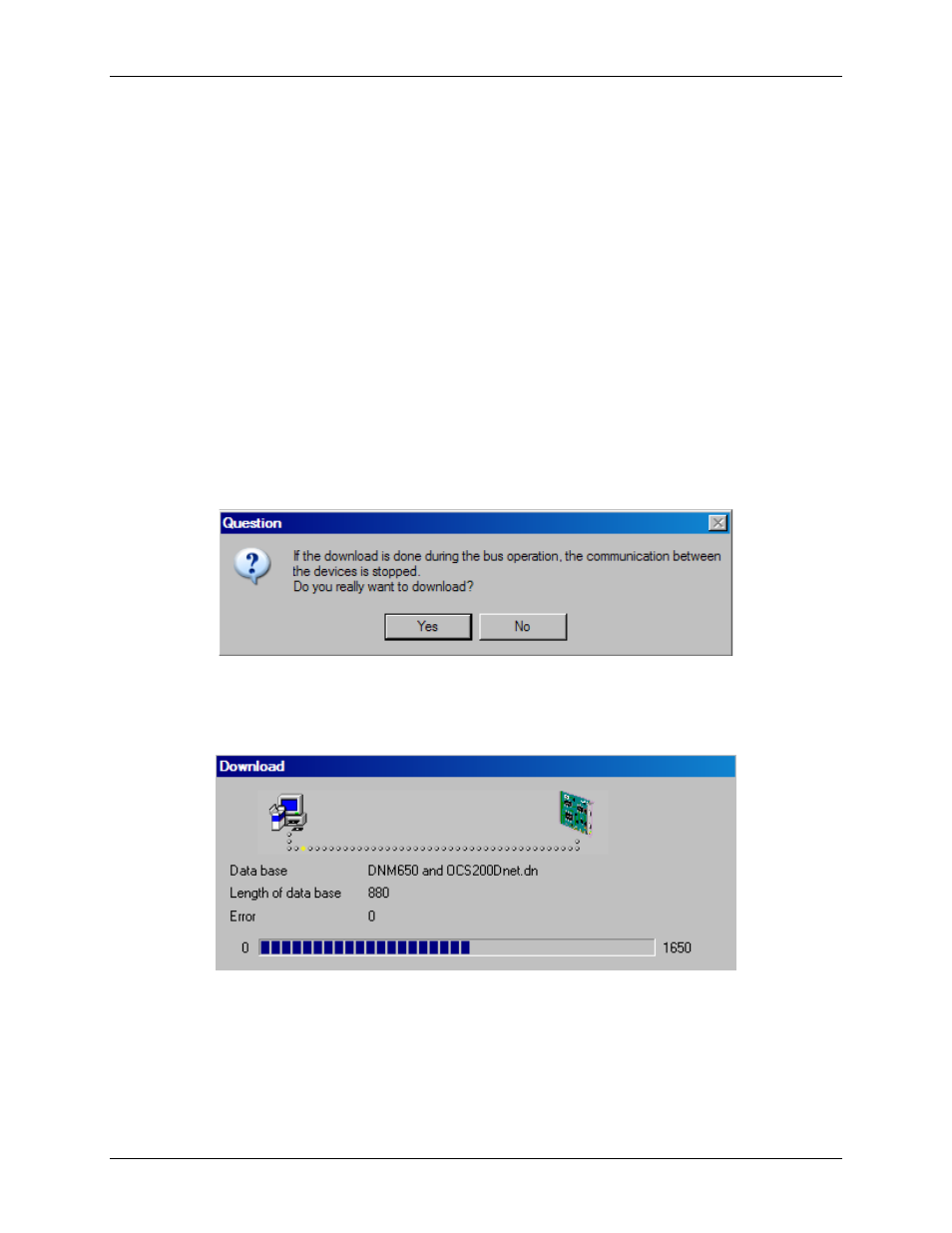

Figure 18: Security question before Download

Attention: The download overwrites the configuration in the device and the communication with the
connected devices is interrupted.

Figure 19: Online > Download
