DeviceNet Modules
HE800DNM650 & HE800DNS600

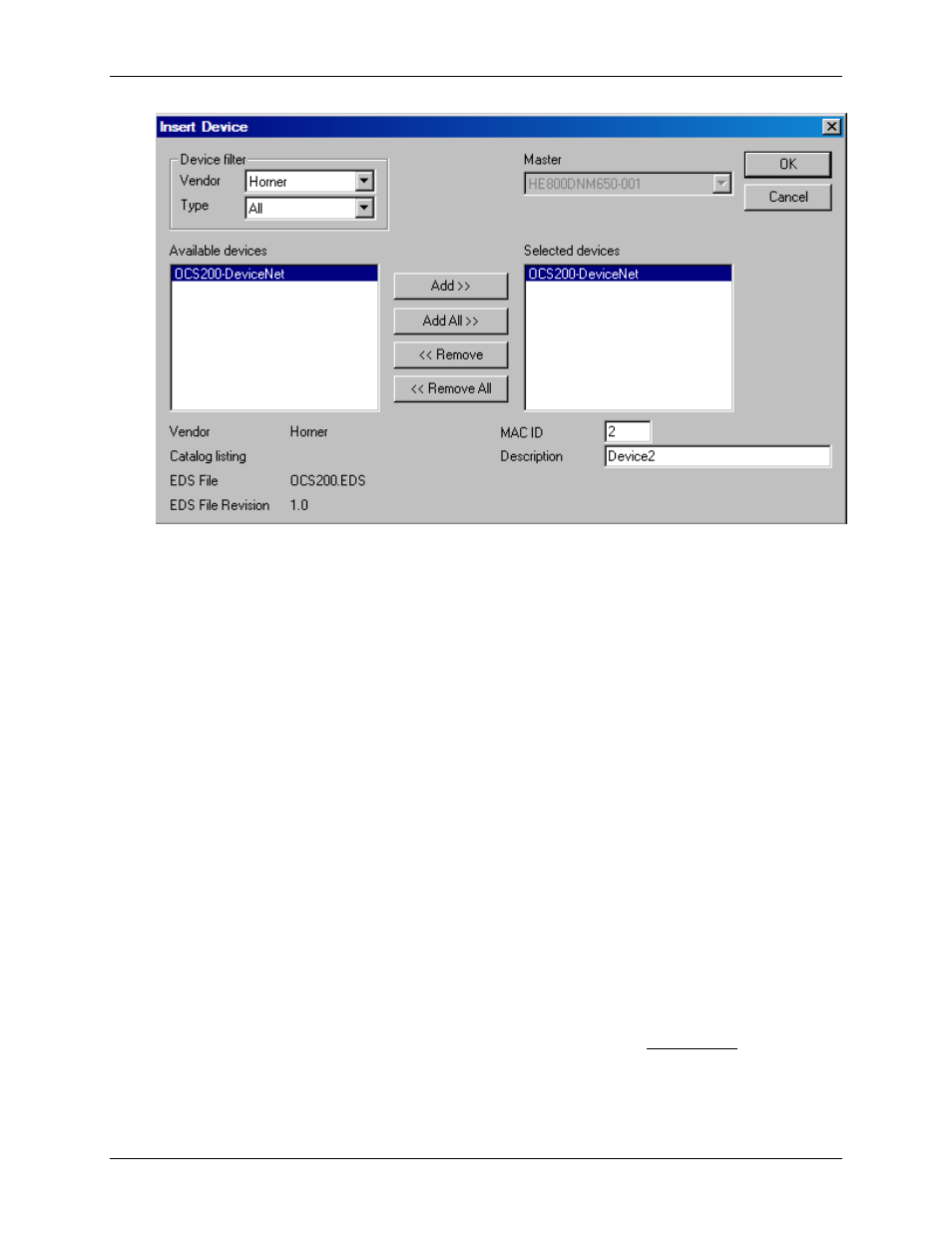

Figure 2: Insert > Device (Slave)
The list on the left displays all the Slave devices whose EDS files have been put in the EDS directory. A
filter may be used to limit the selection list of the manufacturer. Further information on a Slave is shown
below the selection list (Available devices) when it is selected (one mouse click). Apart from the vendor
name and the description especially the ID-Code, the I/O-Code, the file name and the file revision are
given. The Slave appears on the right-hand list with a mouse click or with the Add button.
All devices in the right-hand list are assigned to the current insert point that is also shown in this window.
If the Slaves in the right-hand list are chosen one after the other (a mouse click), then every Slave can be
assigned a name in the Description field.
With each new selected device in the right list the MAC ID is incremented by one but it can be changed
by the user in the field MAC ID.
Note: It is possible to select the same device more than once, however, each device must have a unique
MAC ID to distinguish it in the network.
4.6 Replace
Slave
To replace an existing Slave device first mark the device to be replaced. Then proceed as described in
the section 4.5 Replace Master.
4.7 Device
Configuration
To enter the Device Configuration set the focus on the device (left mouse click) and select the menu
Settings > Device Configuration or set the focus on the device (left mouse click) and use the right
mouse button at the device or simply double-click on the device.
The device’s I/O are assigned to logical addresses in the process data image of the Master in the device
configuration. Note that the device offsets set here will be used in the application to read inputs and write
outputs.
