DeviceNet Modules
HE800DNM650 & HE800DNS600
4. Left click on the module desired and the tags (I/Os) will be displayed in the center window of the
Logical Network View.
5. Select with the left mouse button the tag/symbol desired and drag and drop them in the right
window of the Logical Network View (IO Watch).
6. In the right window select the desired tag with the left mouse click to highlight it then right mouse
click to open a menu. Select Start. A new window called IO Watch appears.
7. A table shows the Device, Symbolic Name, IEC Address (Offset), Data type Representation and
Value. Select the line with the desired information. Click on Hex under Representation and select
the way the values are to be displayed. Choices are Hex, Decimal unsigned, Decimal signed, Bit
pattern.
8. Input data are displayed and can’t be changed. Output data can be entered into the value
column.

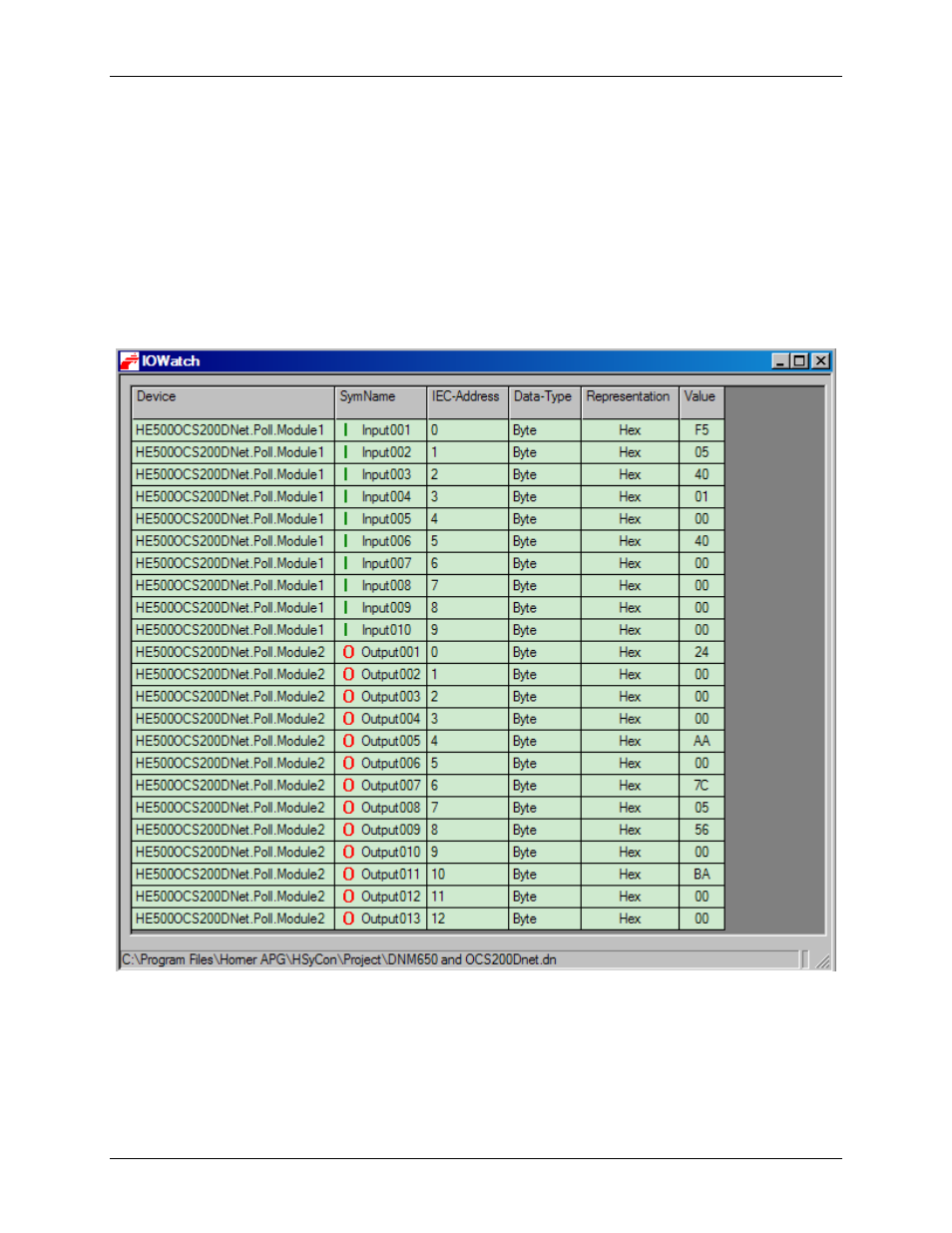

Figure 36: I/O Watch Window
To close this windows use Alt-F4 or click the icon in the upper left corner of the window select Exit.
6.23. DeviceNet
Services
6.24. Get Device Attribute
