DeviceNet Modules
HE800DNM650 & HE800DNS600
The DataPosition of the first module is 26 (M1).
In the following field the DataType, DataSize and DataPosition of the following modules are shown.
Note: If two or more Slave devices are connected to the Master, these are displayed in the
next lines of the table.
7.4. Edit
With Edit > Cut and Edit > Copy the Slave device with its settings and configuration (not the
description of the device) is placed on the Clipboard and with Edit > Paste it can be inserted.
The difference between Cut and Copy is:
With the menu option Edit > Cut the Slave device can be moved from one point in the configuration to
another. With the menu option Edit > Copy an existing Slave device is duplicated.
Selecting Edit > Cut gives the following security question:

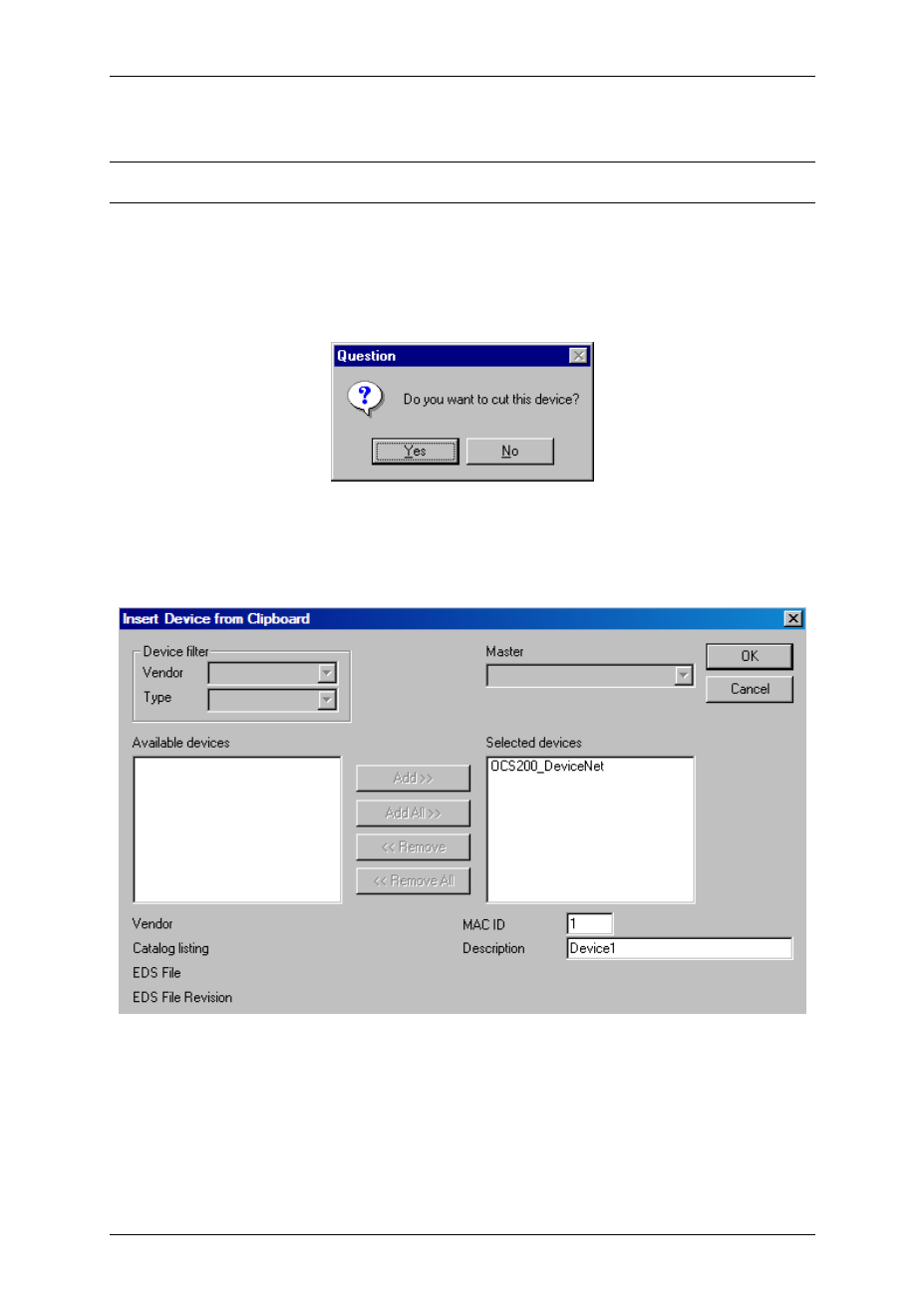

Figure 42: Security question cut device
If Yes is selected, the Slave device is cut and stays in the clipboard.
When Edit > Paste is selected, the device can be inserted again at the position required.
The mouse pointer changes into the "insert device mouse pointer". Click the position where the device
should be inserted. A window opens, where the cut/copied device can be selected.
Figure 43: Edit > Paste cut/copied device
Click OK button to insert the device.
