DeviceNet Modules

HE800DNM650 & HE800DNS600

This menu selection enables the user to get/receive attribute related information from a Slave device. The
user should be familiar with the supported Class, Instance, and Attribute entrees for the Slave device.
These entries should be available within the suppliers data sheet for the Slave product. The return value
will be represented in Hexadecimal. Clicking the ASCII button will change this value to ASCII text. The
Hexadecimal code can be resorted by clicking now the Hex button. Clicking the Get button will receive the
Value from the device.

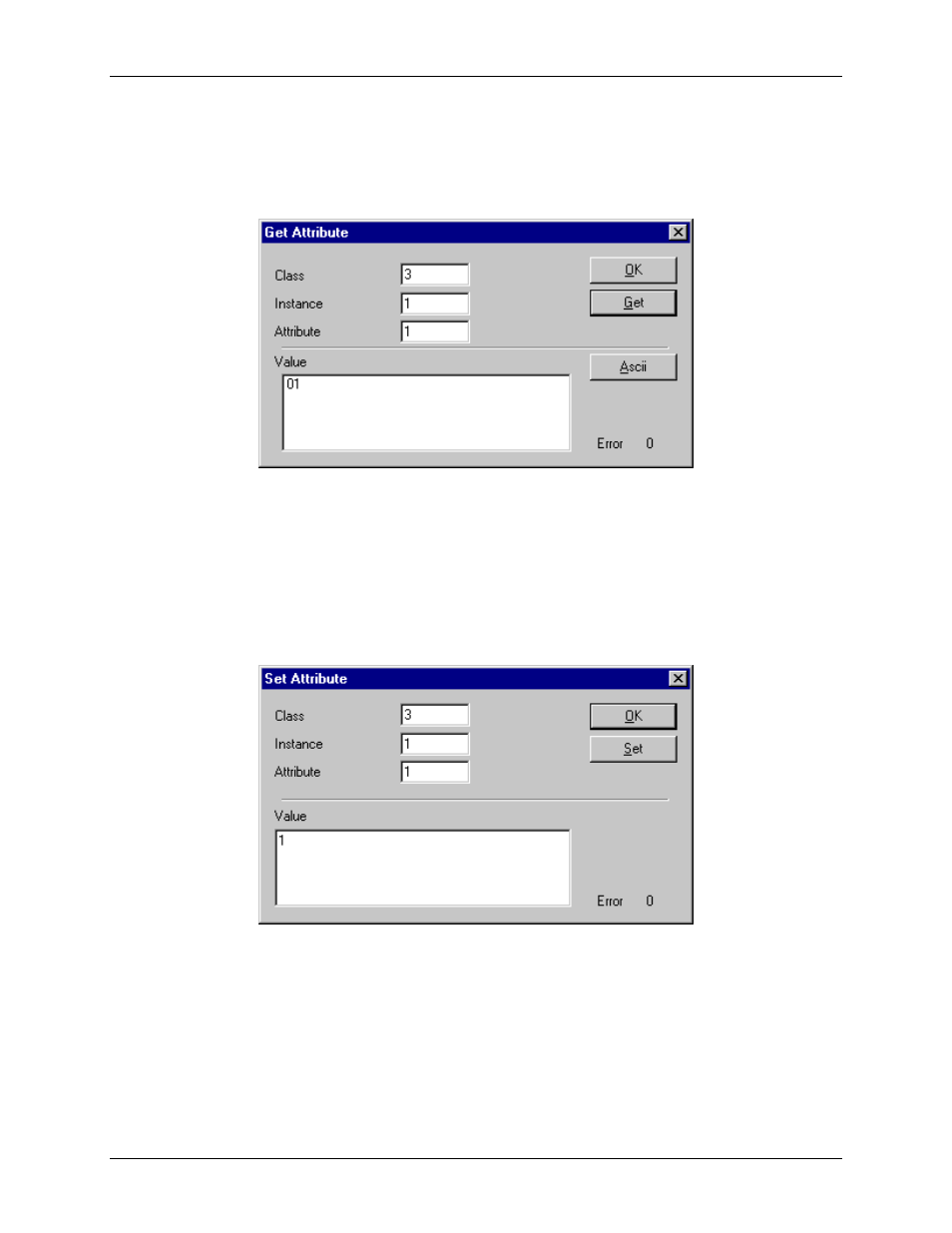

Figure 37: Get Attribute Window




6.25. Set Device Attribute

This menu selection enables the user to set a attribute related to a Slave device. The user should be
familiar with the supported Class, Instance, and Attribute entrees for the Slave device. These entrees
should be available within the suppliers data sheet for the Slave product. The Value will be represented in
Hexadecimal. Clicking the Set button will send the information to the Slave device.

Figure 38: Set Attribute Window


6.26. Change

MAC-ID


To change a MAC-ID of a DeviceNet device (slave), open the Live List. This is described in section
Change MAC-ID on page 49.
