MAN0577-03-en

Page 63 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

CHAPTER 7: FILE, PRINT, EXPORT, EDIT AND VIEW


7.1. File

7.1.1. Open

An existing project can be opened with File > Open.

7.1.2. Save and Save As

When the file name is known, the configuration can be saved under the File > Save menu, otherwise
the File > Save As menu must be selected.

7.1.3. Close

The current project can be closed with File > Close.

7.2. Print

After the current printer has been selected in the File > Printer Setup menu, the configuration can be
printed out under the File > Print menu. For a page view, select the File > Page View menu.

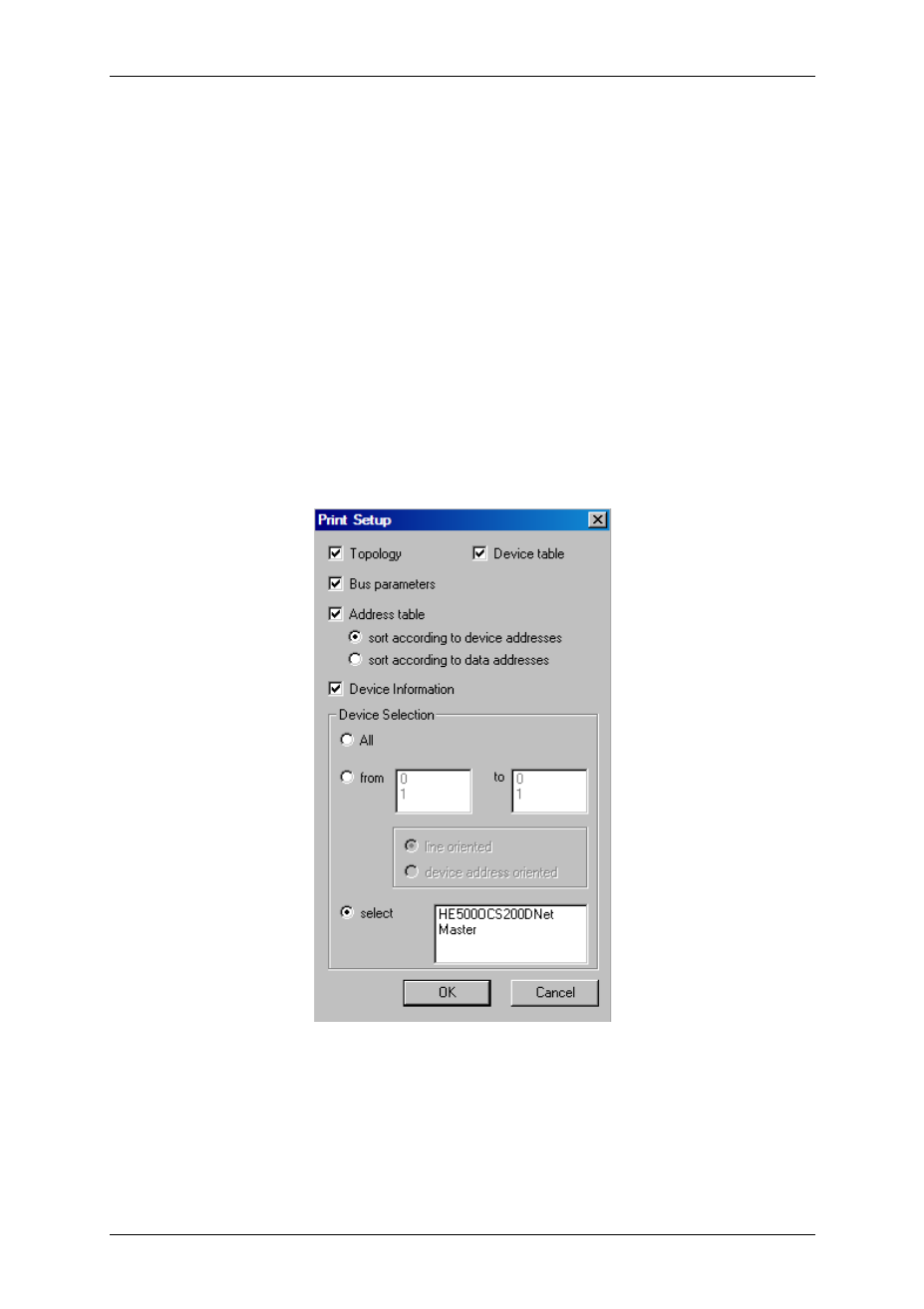

Figure 41: File > Print

The base setting prints information on one sheet only for one device.
Topology the topology of the Bus system.
Bus parameters prints the Bus parameters of the Bus system.
Address table prints the address table of the Master.
Device table prints the device table.
