MAN0577-03-en

Page 57 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600






6.21. I/O

Monitor


This is an easy way of viewing and changing the first 32 Bytes of the process data image.

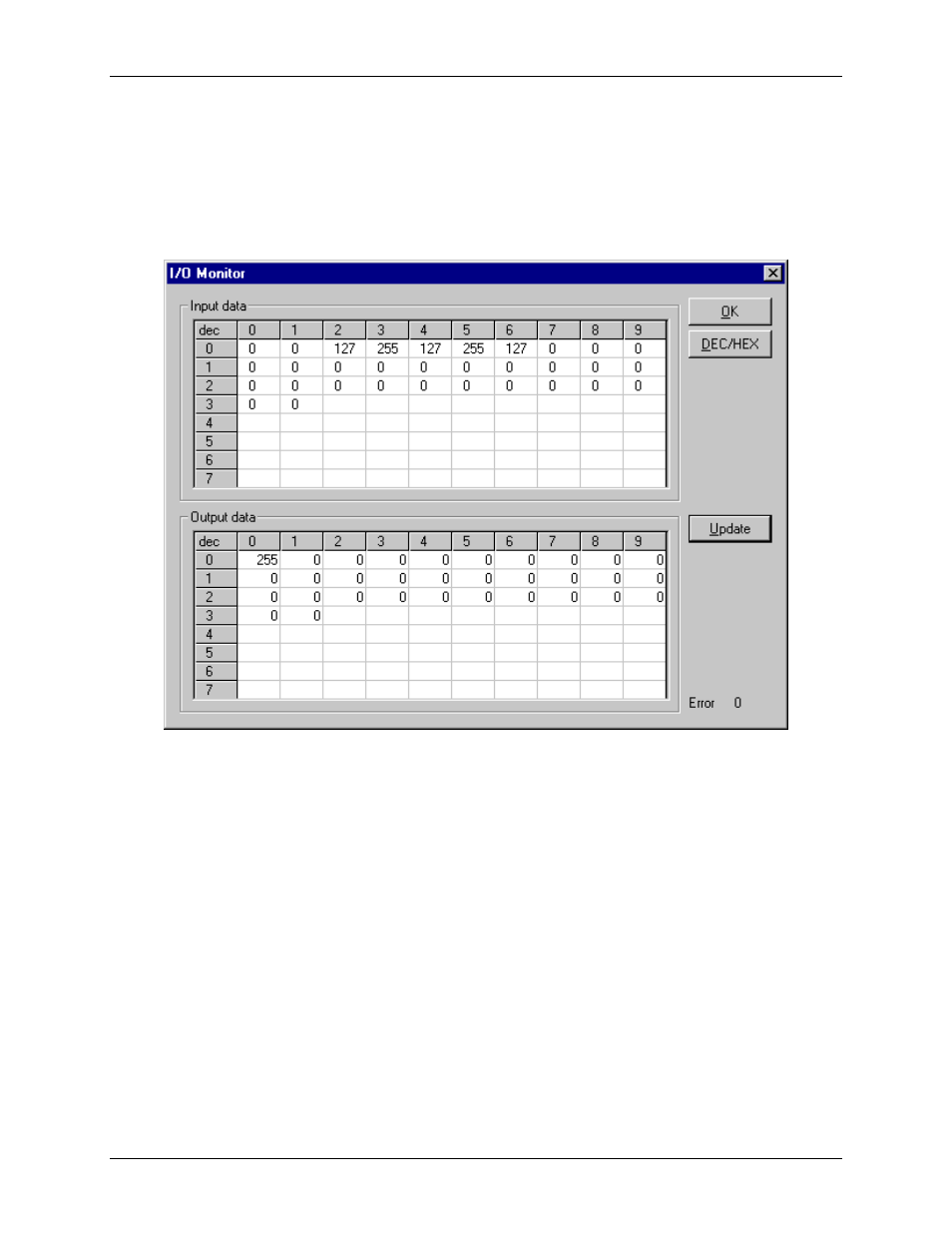

Figure 34: Online > IO Monitor

DEC/HEX converts the display of the input data. The output data are always in the decimal form.
Enter the output value and then press Update.
Always the first 32 input and output Bytes of the process description are shown, also when these Bytes
have not been occupied by the configuration.
The display is always in a byte manner.
The I/O Watch Monitor described in the next section allows a more comfortable display.


6.22. I/O

Watch



The I/O Watch monitor can be used in place of the I/O Monitor and offers more functionality.
• Various data formats: Hex, Unsigned Decimal, Signed Decimal, Bit
• The I/O Watch monitor works symbol oriented
• It is not necessary to know the offset addresses
The following firmware supports the I/O Watch monitor function:
