MAN0577-03-en

Page 68 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

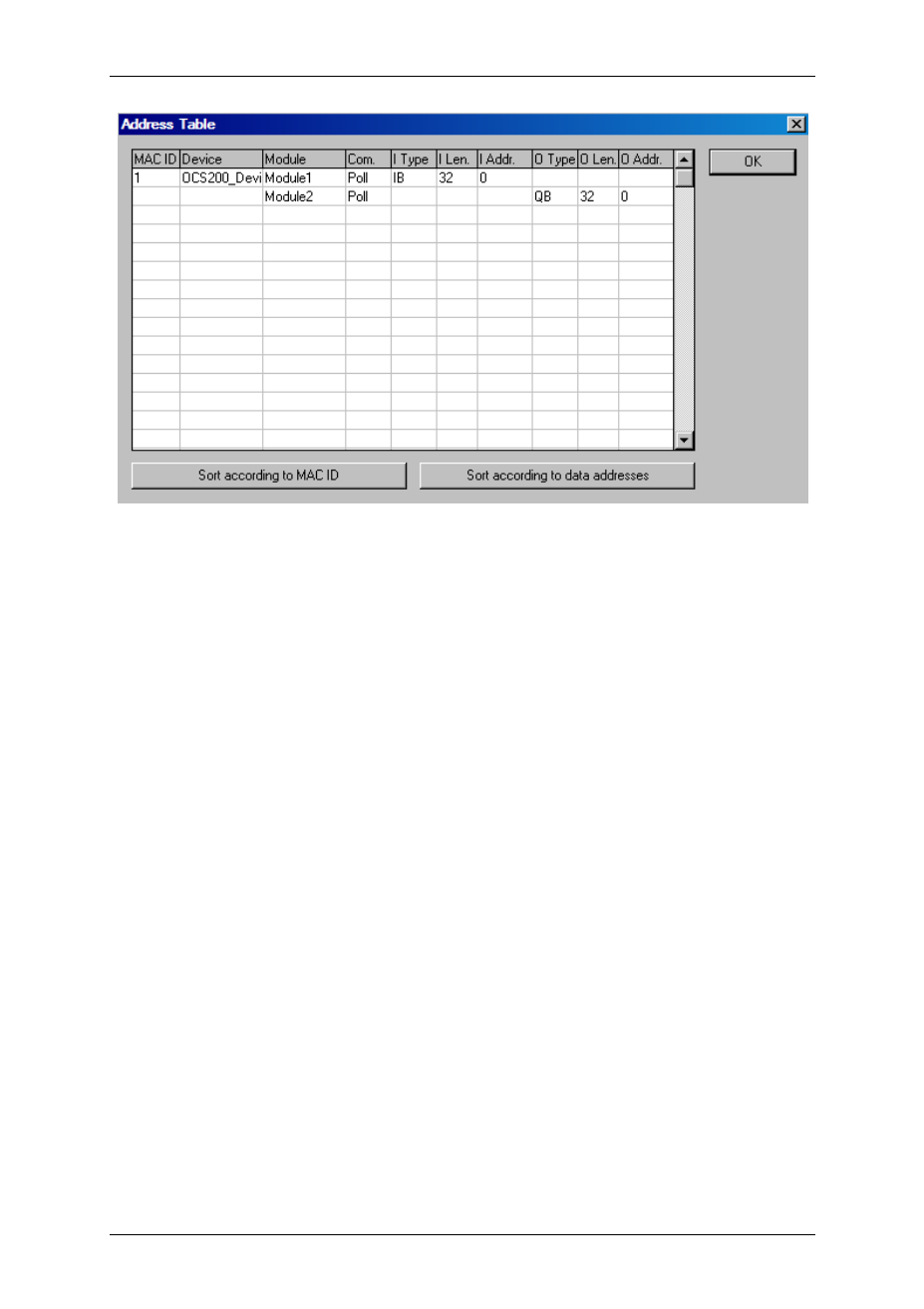

Figure 46: View > Address Table


7.6. View Menu HSyCon
7.6.1. Logical Network View

In the menu View > Logical Network View the user can activate or deactivate the network view by
selecting its (with hook) or by not selecting it (without hook).
The network view is used for example for the Start Options.

7.6.2. Toolbars

In the menu View > Toolbars the user has the possibility to activate or deactivate the Toolbars
Standard and Fieldbus. If this function is deactivated the toolbars are not shown.

7.6.3. Status Bar

In the menu View > Status Bar this bar can be activated (with hook) or deactivated (without hook).
