MAN0577-03-en

Page 43 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

Before the download is executed, the configuration is tested by the Configurator. The most common
cause of error is overlapping of addresses in the process data image. This can be checked by calling up
the address table with the View > Address Table menu point.
If the issue of addresses in the process data image should be carried out automatically, then the Auto
Addressing
button in the Master Configuration window must be activated.
The configuration is transferred into the selected device and stored there in FLASH memory in a zero
voltage manner so that the configuration is available when the voltage supply is switched off and on
again.
After the download, the device carries out an internal restart and begins with the communication if in
DeviceNet Master Settings the Automatic Release of Communication by the Device menu point has
been set.


6.4. Firmware Download

If a Firmware download is to be carried out, proceed as follows: first the desired device for Firmware
downloading must be chosen in that the symbol of the device is selected with a left mouse click. Then,
call up the Online > Firmware Download menu. Select the new Firmware and retrieve it with Download
into the device. The Firmware is now retrieved.

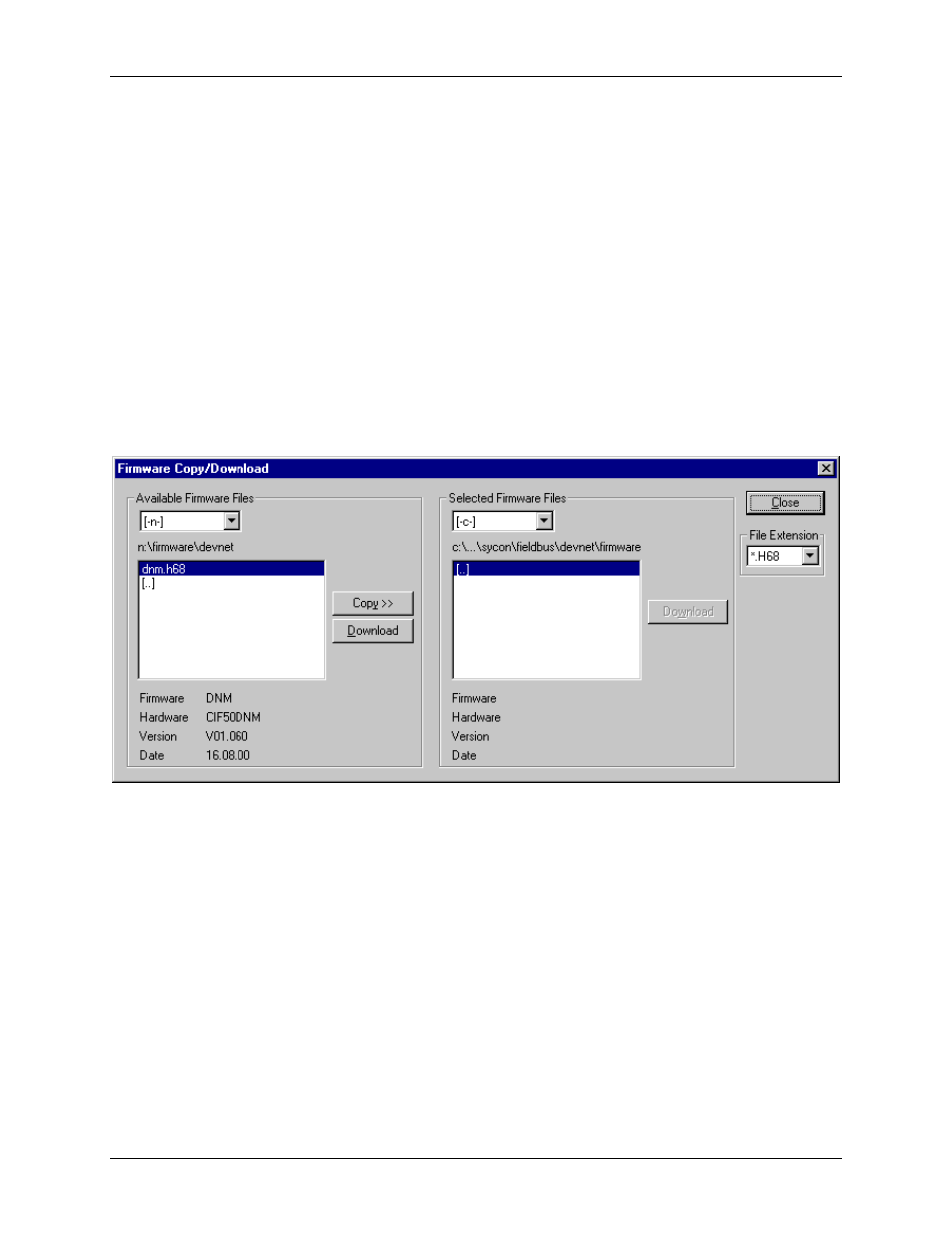

Figure 20: Online > Firmware Download



6.5. Firmware / Reset

First the desired device must be chosen with a left mouse click on the symbol of the device. Then the
Online > Firmware / Reset menu must be called up and the name and the version of the Firmware are
displayed.
