MAN0577-03-en

Page 46 of 98

EO 09-0009

DeviceNet Modules

HE800DNM650 & HE800DNS600

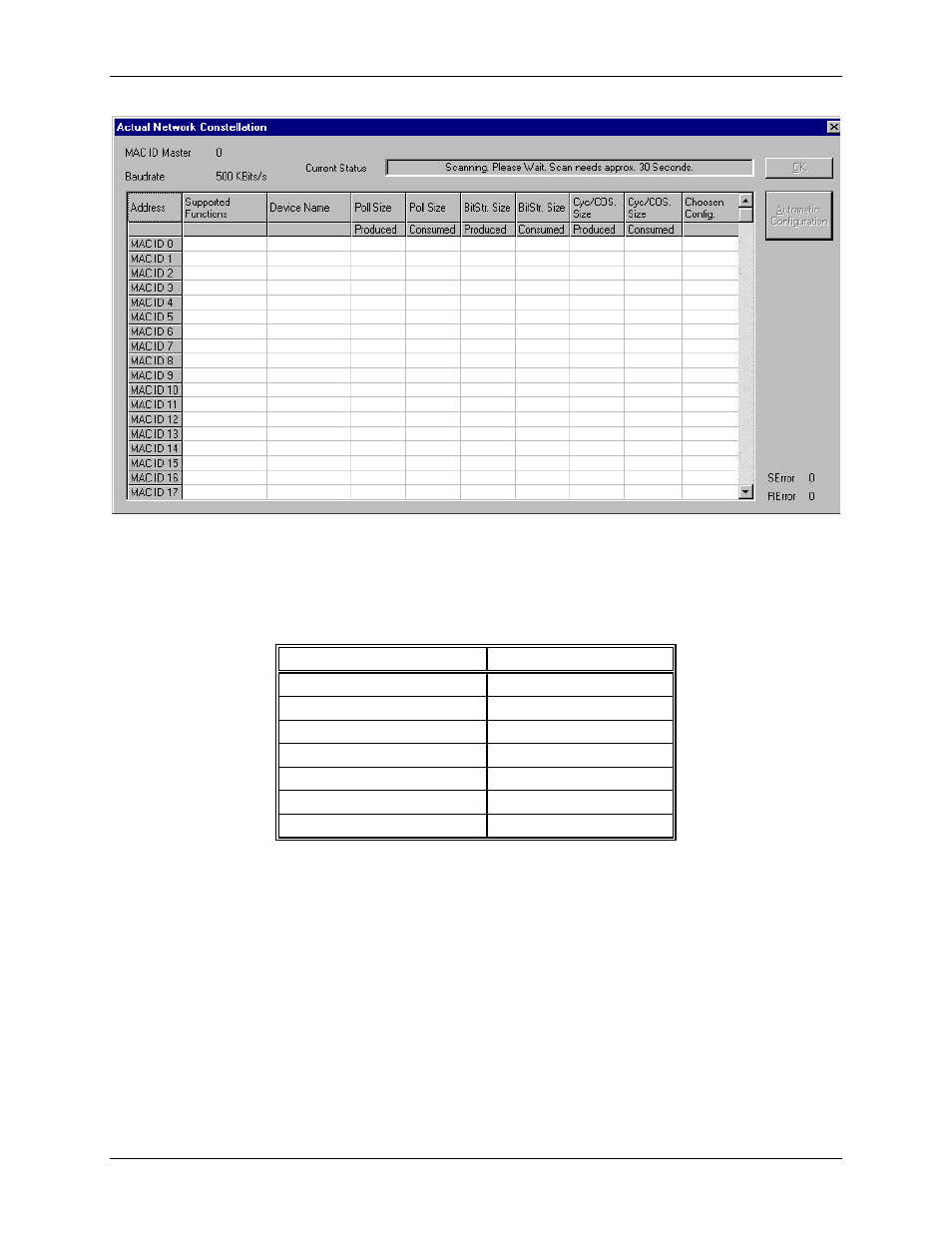

Figure 24: Online > Automatic Network Scan (during scan)

The network scan will take approx. 30 seconds. The network scan is still in progress and could not be
interrupted until the status, shown in the field “Current Status”, is “Ready!”. When the scan is done, the
devices found can be seen at the corresponding MAC ID address in the table.
The master reads the following objects from the DeviceNet device (Slave) during the scan:

Element Class.Instance.Attribute

Device Name

1.1.7

Poll Size Produced

5.2.7

Poll Size Consumed

5.2.8

BitStr. Size Produced

5.3.7

BitStr. Size Consumed

5.3.8

Cyc/COS. Size Produced

5.4.7

Cyc/COS. Size Consumed

5.4.8

Table 9: Readed Classes.Instance.Attribute during the network scan
