A.6. DNM_Task Receive Queue

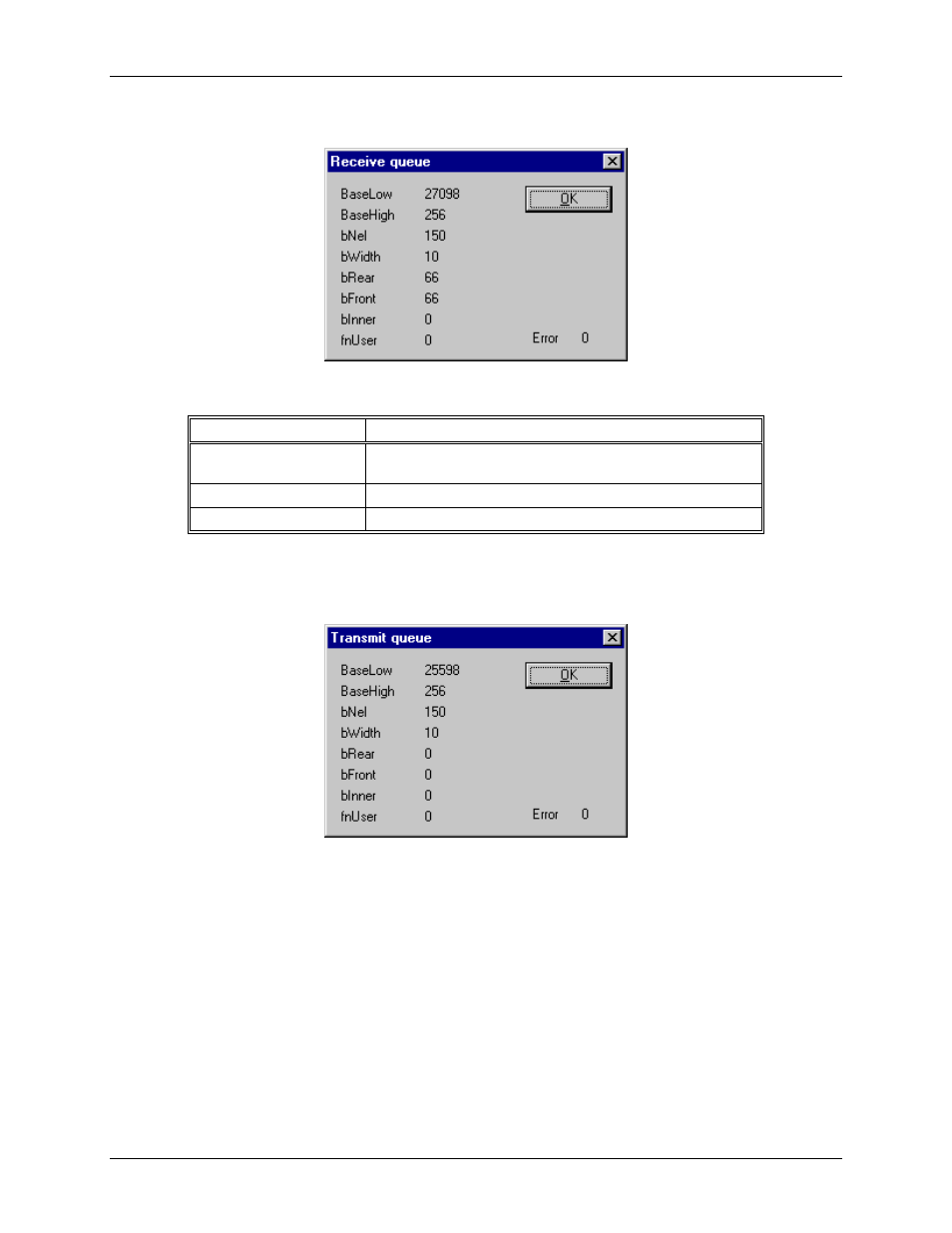

Figure 51: DNM_Task Receive Queue
The Receive Queue is used to monitor the receive transmission queue of the internal CAN controller.
Variable Meaning
bRear A pointer to where the next message will be dequeue from the
queue body
bFront A pointer to where the next message will be stored
bInner The actual number of stored messages
Table 45: Receive Queue
A.7.
DNM_Task Transmit Queue
Figure 52: DNM_Task Transmit Queue
