Software User Guide
72
Network Tab
3.4.3.4
Port Allow/Forwarding Rules
The Firewall Port Forwarding is used to configure routes from a small range of IP Addresses or all IP Addresses through one
or more interfaces to a designated IP Address located behind the Red Lion router.
Service Access (Allow) Rules:
The Service Access Rules option is used to define what ports, either as a single port or a
range of ports, are authorized access through the firewall on the Red Lion router.
To add a new Service Access Rule:
•

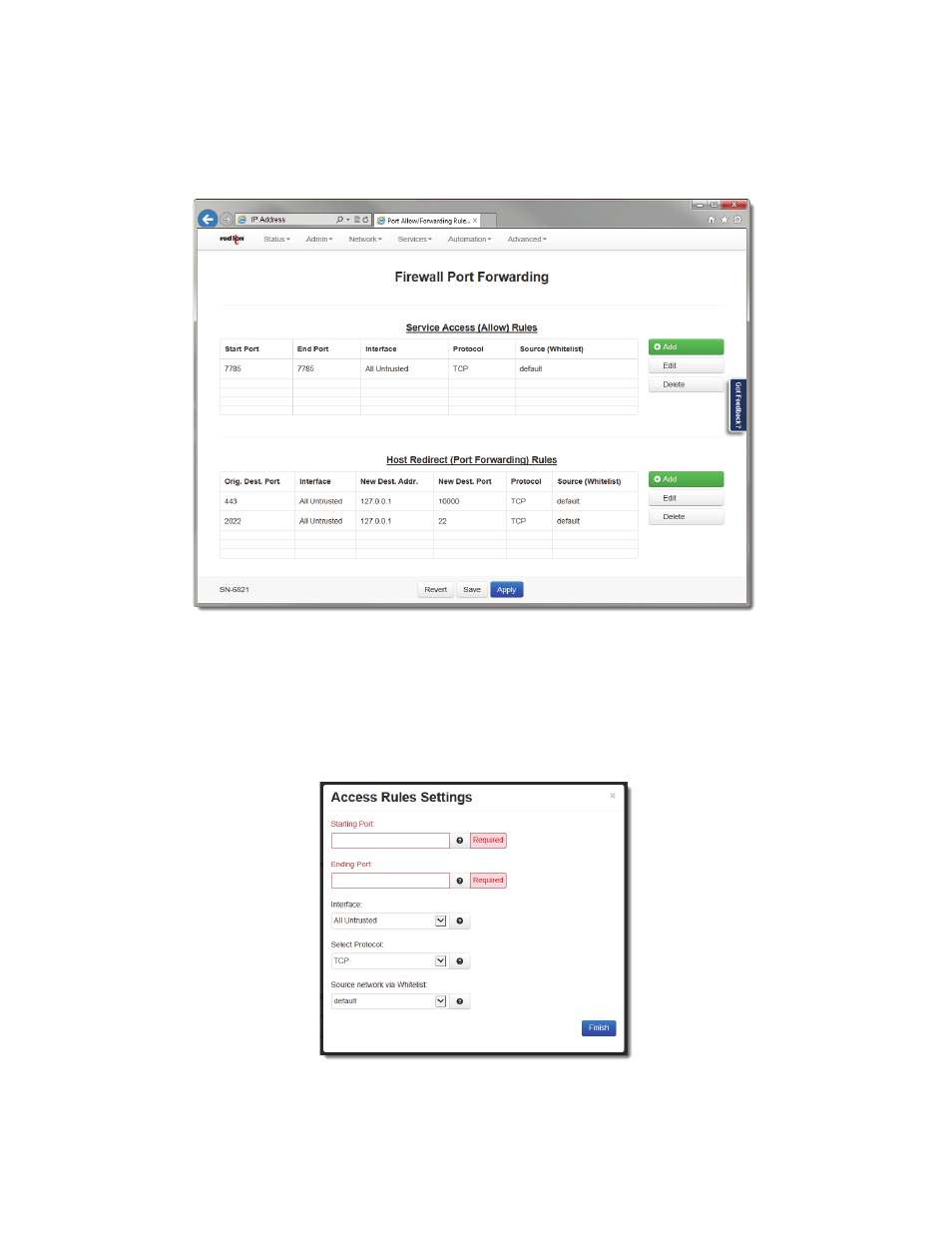

Click on the Add button and the following dialog window:
Starting Port (Required): Enter the starting TCP or UDP port number for this rule. Note: If adding only one port, enter
it here.
