Page 64

Software User Guide
64
Network Tab
Interface: Choose an interface from the drop‐down list provided. You may add any number of interfaces, up to as
many exist on the device. Each selection must be unique.
Untrusted interfaces will block all incoming traffic from devices/networks connected to this interface. Exceptions must
be defined in firewall rules to allow traffic (General Settings, Allow/Redirect, etc.)
•
Click on the Finish button to populate the Untrusted Interface screen.
•
Click on the “Save” button for changes to be saved without activating the interface until you reboot the unit, the
“Apply” button will save your settings and apply them immediately. To revert to the previous defaults, click on the
“Revert” button.
3.4.3.2

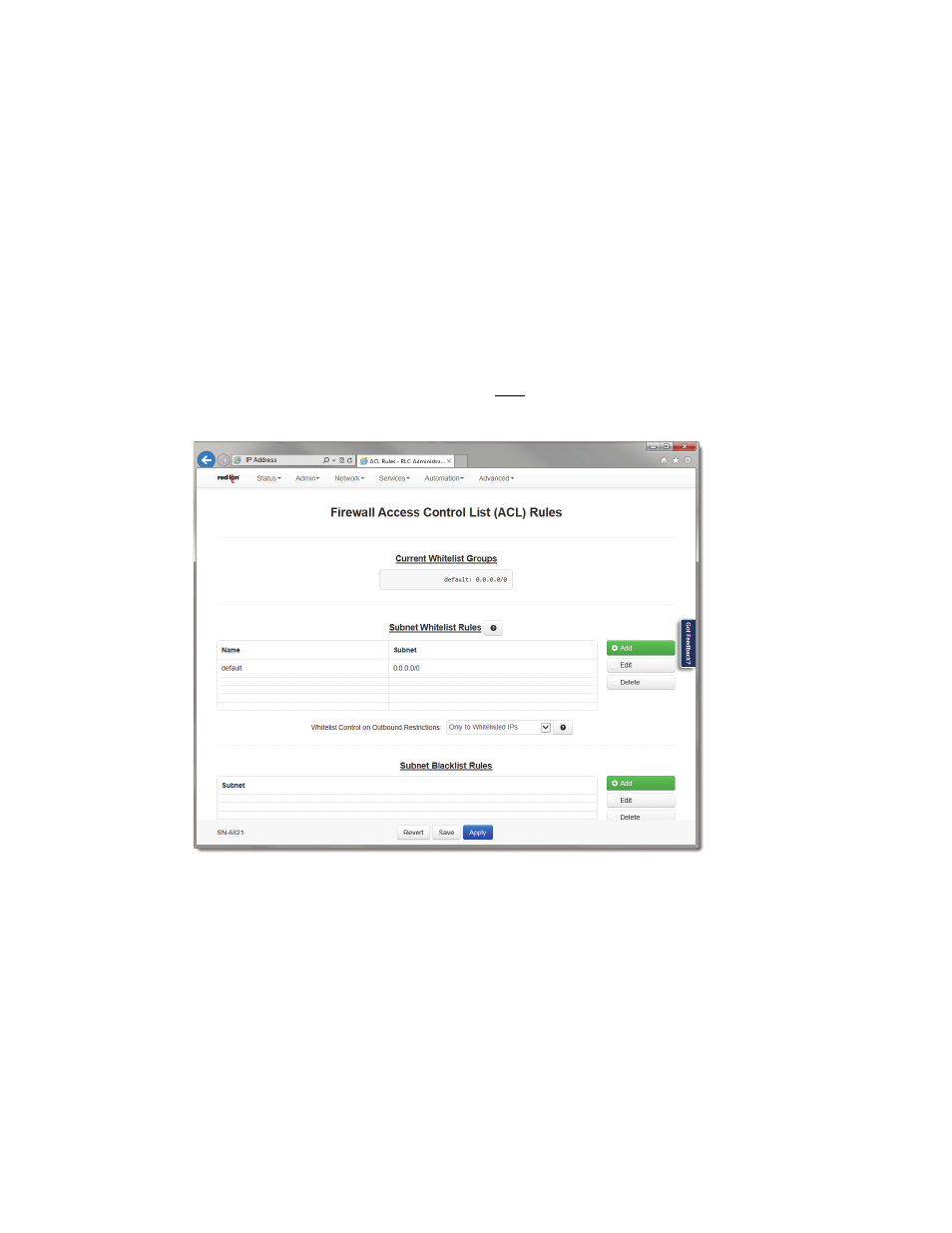

ACL Rules ‐ Firewall Access Control List Rules
From the ACL Rules dialog window, Whitelist and Blacklist rules are defined. Whitelist Rules are used to define a single IP
Address or an entire network that would be allowed to access the network behind the Red Lion router. Blacklist Rules are
used to define a single IP Address or an entire network that are NOT allowed to access the network behind the router.
Current Whitelist Groups: This field is populated by the information entered in the Subnet Whitelist Rules Section.
Subnet Whitelist Rules: The Subnet Whitelist Rules are used to define a single IP Address or an entire network that you
want to allow access into the network behind the Red Lion router.
•
Click on the Add button and the following dialog window will appear:
