Software User Guide
157
Automation Tab
Span display box. Click the Apply button and observe the effect of the new span factor. Repeat this step until a satisfactory
reading is displayed.
4.
The channel is now calibrated.

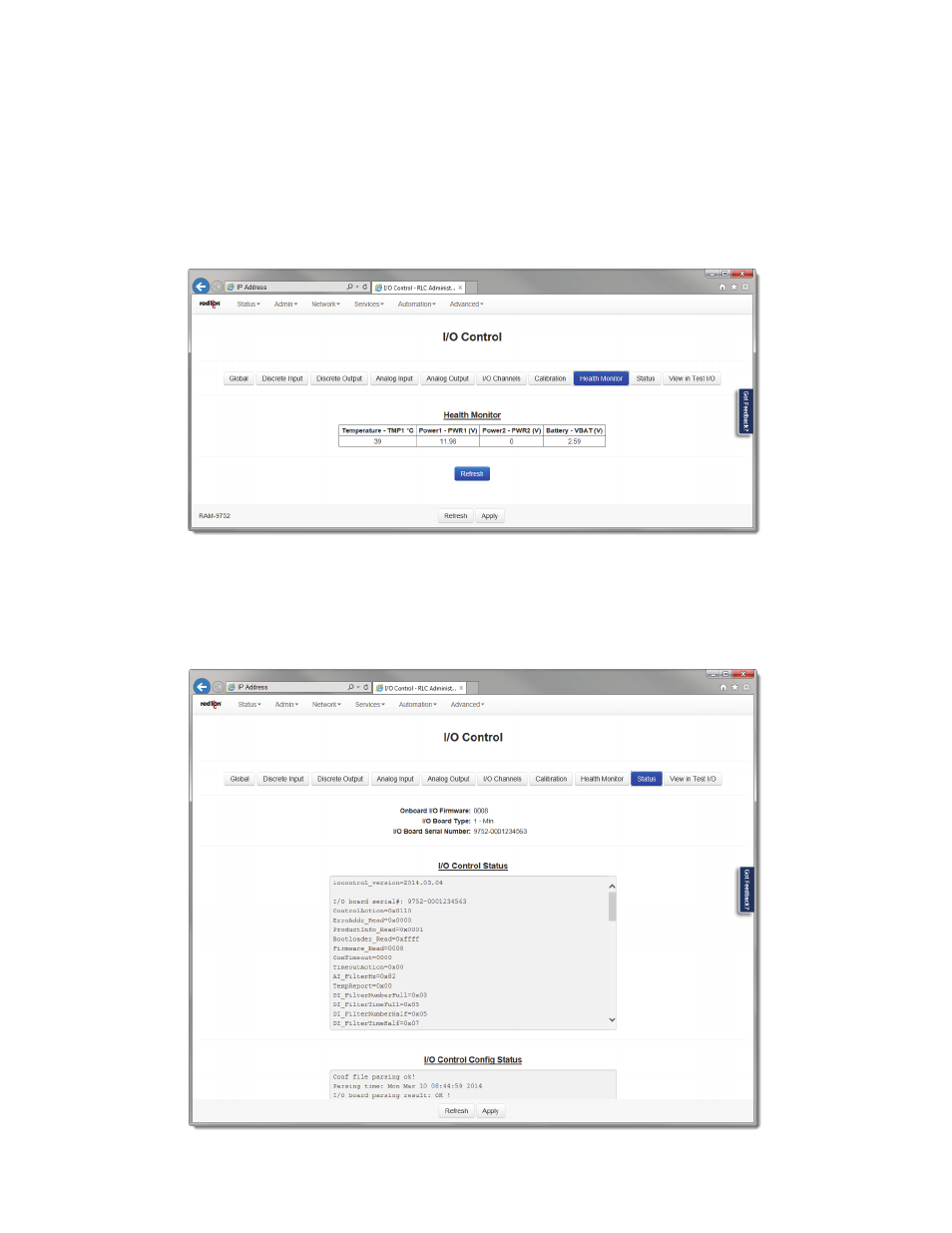

Health Monitor
•
Click on the Health Monitor button and the dialog window below will appear. This dialog window will supply the
user with feedback on the unit’s temperature and power readings.
Status
•
Click on the Status button and the dialog window below will provide you with your system’s I/O Control Status and
I/O Control Config Status.
