Analog Objects
30: Analog Input: Combo Box that shows the different choices for Object 30 (Analog Input) that the user can select as
a default variation.
31: Frozen Analog Input: Combo Box that shows the different choices for Object 31 (Frozen Analog Input) that the
user can select as a default variation (only on Level 2+).
32: Analog Change Event: Combo Box that shows the different choices for Object 32 (Analog Input Change Events)
that the user can select as a default variation.
33: Frozen Analog Event: Combo Box that shows the different choices for Object 33 (Frozen Analog Input Change
Event) that the user can select as a default variation (only on Level 2+).
40: Analog Output Status: Combo Box that shows the different choices for Object 40 (Analog Output) that the user
can select as a default variation.
Binary Counter Objects
20: Binary Counter: Combo Box that shows the different choices for Object 20 (Binary Counters) that the user can
select as a default variation.
21: Frozen Counter: Combo Box that shows the different choices for Object 21 (Frozen Binary Counters) that the user
can select as a default variation.
22: Binary Counter Change: Combo Box that shows the different choices for Object 22 (Binary Counters Change
Events) that the user can select as a default variation.
23: Frozen Counter Change: Combo Box that shows the different choices for Object 23 (Frozen Binary Counters
Change Event) that the user can select as a default variation (only on Level 2+).
• Click on the “Save” button to save the Forwarding configuration in the modbus.xml file. The “Apply” button will
save your settings and apply them immediately. To revert to the previous defaults, click on the “Revert” button.

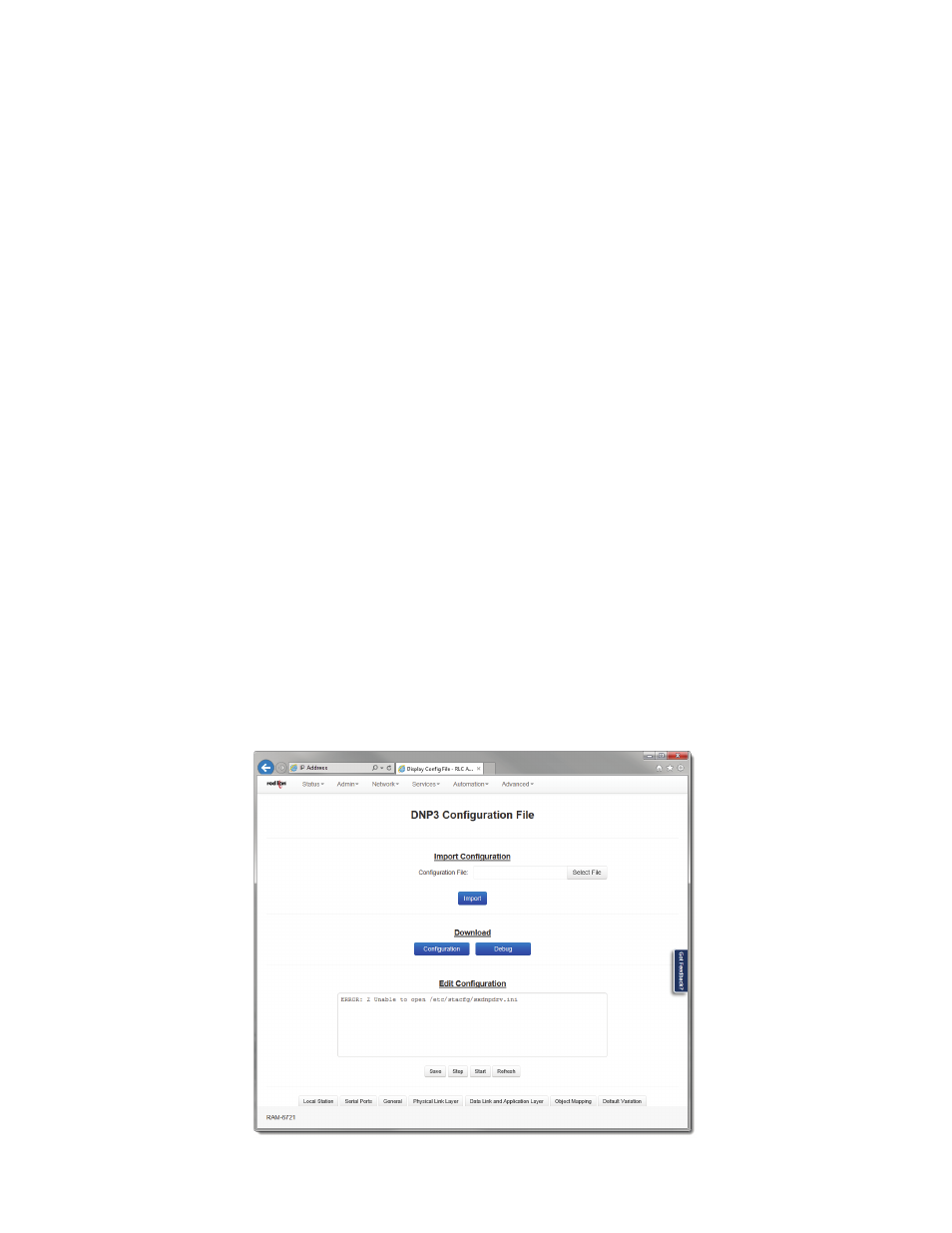

3.6.4.6 Display Config File
