Red Lion LPAX/MPAX User Manual

Cus listed us listed, General description, Safety summary

background image

1

!

LARGE LED DISPLAY READABLE TO 70 FEET

!

VARIOUS ANALOG INPUT MODULES;

DC VOLTAGE AND CURRENT
PROCESS SIGNALS
TRUE RMS VOLTAGE AND CURRENT
THERMOCOUPLE OR RTD
STRAIN GAGE/BRIDGE

!

ALARMS, ANALOG OUTPUT, AND COMMUNICATION

!

CUSTOM UNITS LABEL WITH BACKLIGHT

!

PROGRAMMABLE USER INPUTS

!

PROGRAMMABLE FUNCTION KEYS

!

UNIVERSAL AC/DC POWERED MODELS

!

CRIMSON PROGRAMMING SOFTWARE

!

NEMA 4/IP65

GENERAL DESCRIPTION

The LPAX Display is a versatile display that can increase productivity by

offering the plant floor or production area a large visual display of their current
status. Whether your measurement is temperature, weight, or flow, the LPAX
can satisfy your requirement. With the use of a units label and backlighting, the
display can be tailored to show the actual engineering unit, which further
enhances the display. This LPAX display accepts various analog inputs through
the use of input modules (MPAX) which allow the unit to adapt to most any
application. The MPAX Modules offer the same features as our highly
successful PAX Series Panel Meters. Additional plug-in option cards can add
alarms, analog output, and communication/bus capabilities, making the LPAX a
truly Intelligent Panel Meter.

SAFETY SUMMARY

All safety regulations, local codes and instructions that appear in this and

corresponding literature, or on equipment, must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment connected
to it. If equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.

The protective conductor terminal is bonded to conductive

parts of the equipment for safety purposes and must be
connected to an external protective earthing system.

SPECIFICATIONS

Additional specifications, wiring, programming, and information for the
individual MPAX models are contained in the corresponding standard PAX
literature. This PAX literature is shipped with the ordered MPAX model.

1. DISPLAY: 1.5" (38 mm) Red LED

5-Digit: (-19999 to 99999)

2. POWER REQUIREMENTS:

AC Modules: 85 to 250 VAC, 50/60 Hz, 18 VA
DC Modules: 11 to 36 VDC or 24 VAC ±10%, 50/60 Hz, 14 W

3. INPUT: Accepts analog input modules, see “Selecting your display

components.”

4. ANNUNCIATORS:

LPAX0500: MAX, MIN, TOT, SP1, SP2, SP3, and SP4
Optional units label with backlight

5. KEYPAD: Five tactile membrane switches integrated into the front panel
6. CERTIFICATIONS AND COMPLIANCES:

UL Recognized Component, File #E179259, UL61010A-1, CSA 22.2 No. 1010-1

Recognized to US and Canadian requirements under the Component
Recognition Program of Underwriters Laboratories, Inc.

UL Listed, File # E137808, UL508, CSA C22.2 No. 14-M95

LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards

Type 4 Enclosure rating (Face only), UL50
IECEE CB Scheme Test Certificate #US/8843/UL

CB Scheme Test Report #04ME11209-20041018

Issued by Underwriters Laboratories, Inc.

IEC 61010-1, EN 61010-1: Safety requirements for electrical equipment

for measurement, control, and laboratory use, Part 1.

IP65 Enclosure rating (Face only), IEC 529

ELECTROMAGNETIC COMPATIBILITY

EMC specifications determined by the MPAX module.

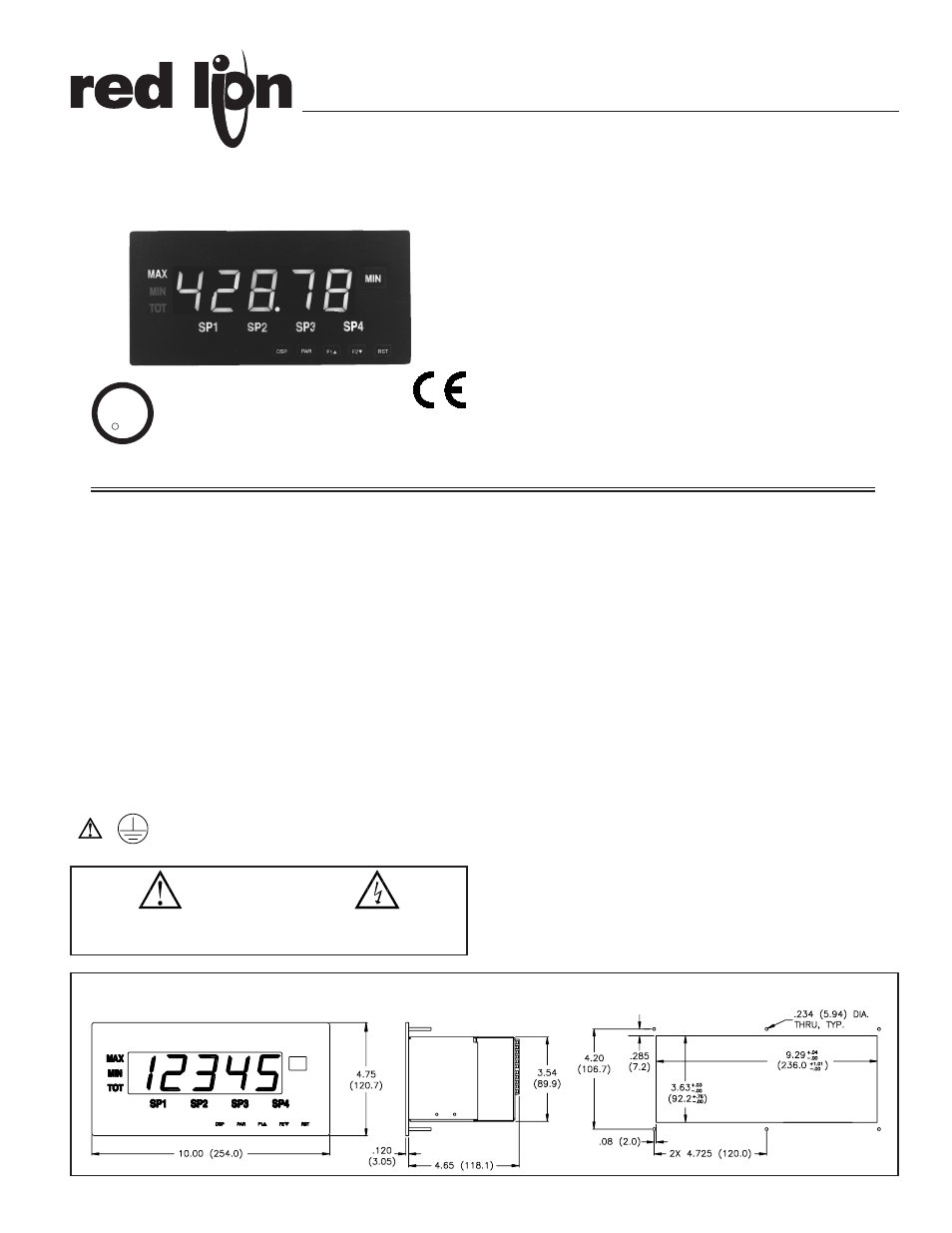

MODEL LPAX- 5 DIGIT LARGE PAX DISPLAY FOR ANALOG INPUTS

DIMENSIONS In inches (mm)

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

CAUTION: Risk of electric shock.

PANEL CUT-OUT

Bulletin No. LPAX-D
Drawing No. LP0489
Released 12/05

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

C

US LISTED

US LISTED

UL

4

IND. CONT. EQ.

51EB
