Page 28

Software User Guide 28
Status Tab
3.2.3.1

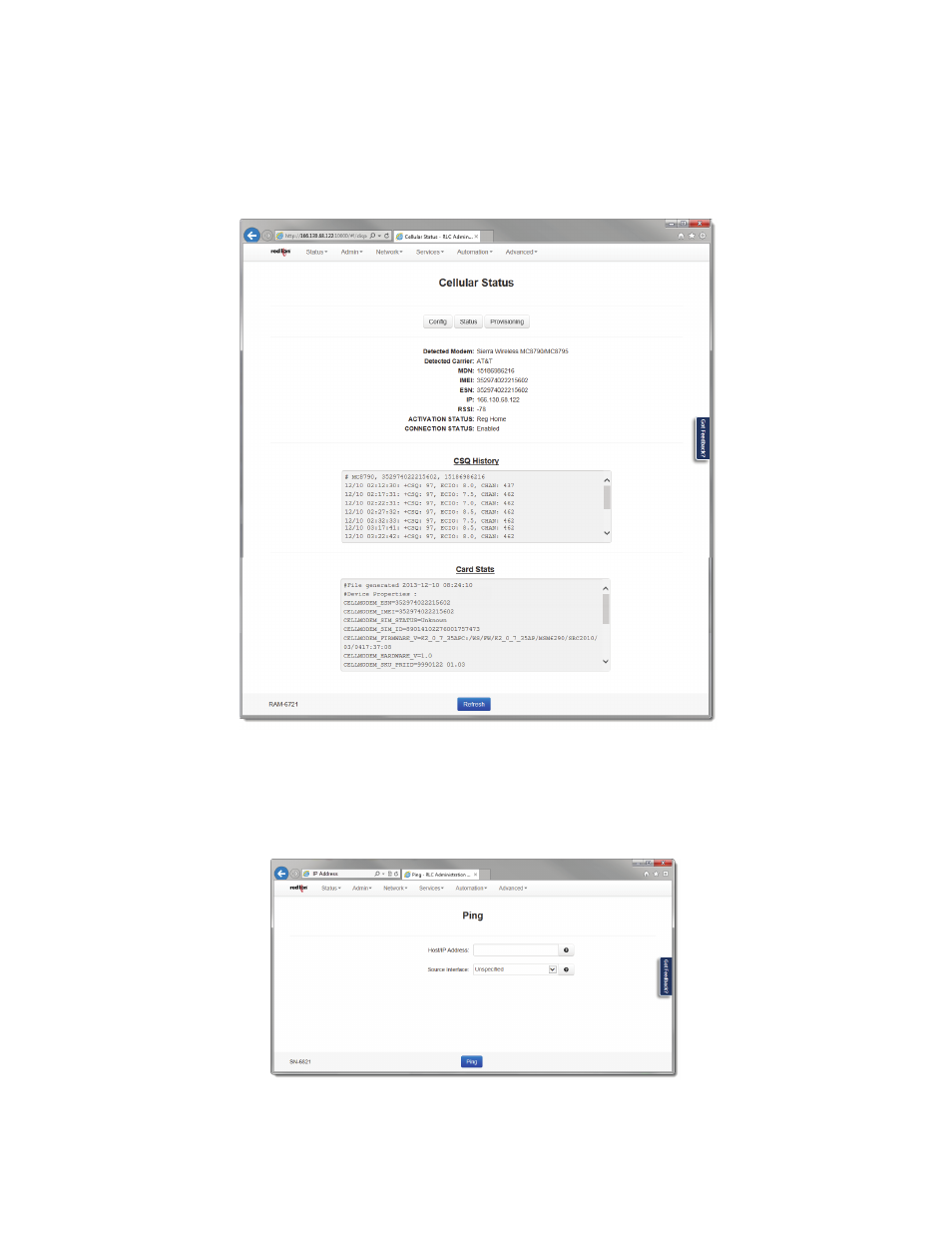

Cellular Status
The Status menu item will bring up a dialog window which displays the status of the cellular connection. From here, you
can get information such as the type of modem, carrier, MDN, IMEI, ESN, IP RSSI, Activation Status, Connection Status,
CSQ Status and Card Stats.
3.2.3.2
Ping
The Ping menu item allows you to input an address either as an IP Address or a URL for testing the destination availability.
Host/IP Address field: Type in the IP Address or URL you wish to Ping. It is recommended you start with a locally
accessible IP address to confirm communication to an interface’s local subnet. Then proceed to addresses on distant
