90 - iMac G5 (20-inch) Take Apart
AirPort Extreme Card Holder
Replacing the AirPort Extreme Card Holder
1.

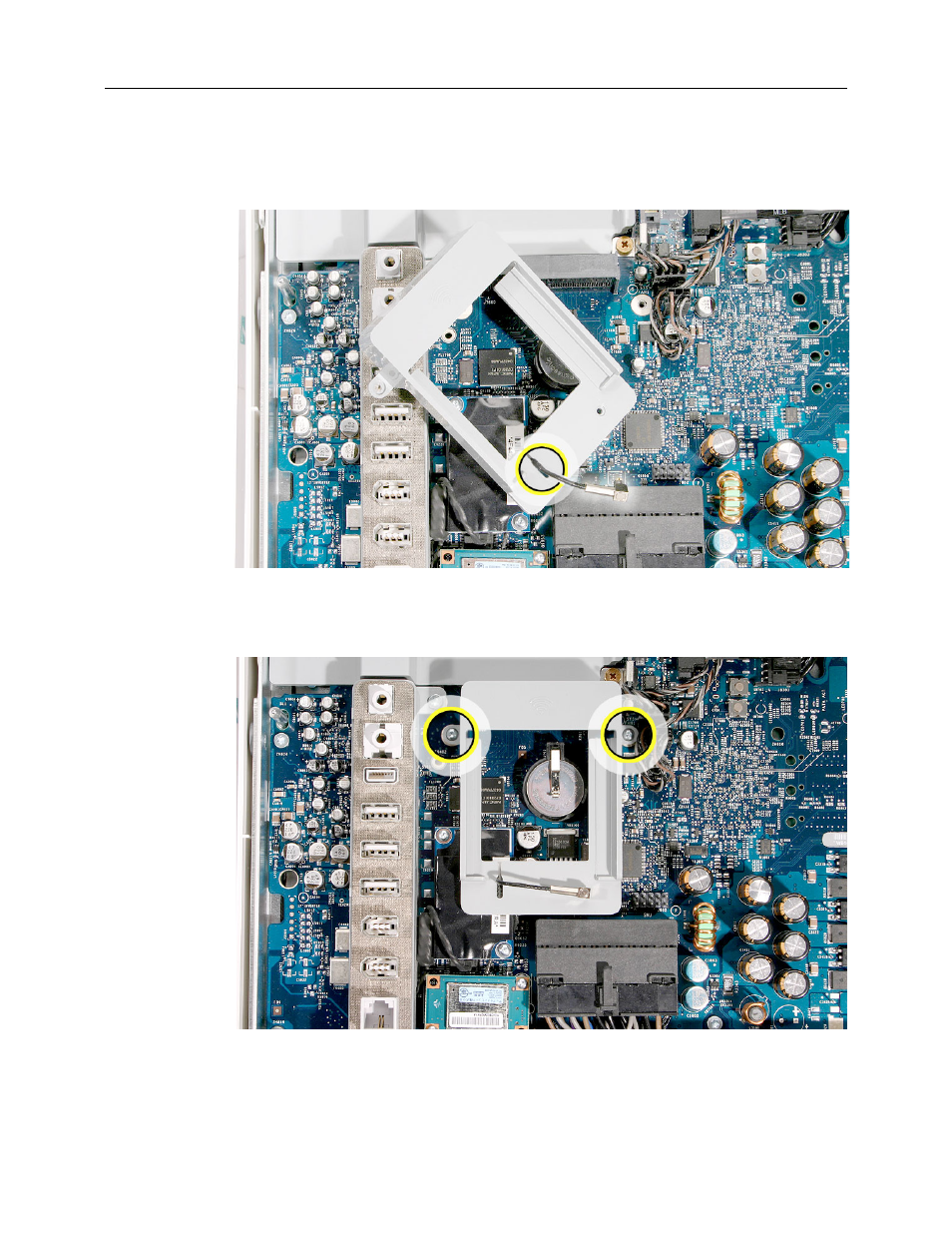

Route the AirPort antenna cable into the holder.
2.
Fit the AirPort Card holder onto the logic board. With the AirPort Card holder properly
aligned and level, replace the two screws.
3.
Replace the AirPort Extreme Card.
4.
Replace the back cover.
