216 - iMac G5 (20-inch) Take Apart
AirPort Extreme Antenna Cable
Replacing the AirPort Extreme Antenna Cable
1.

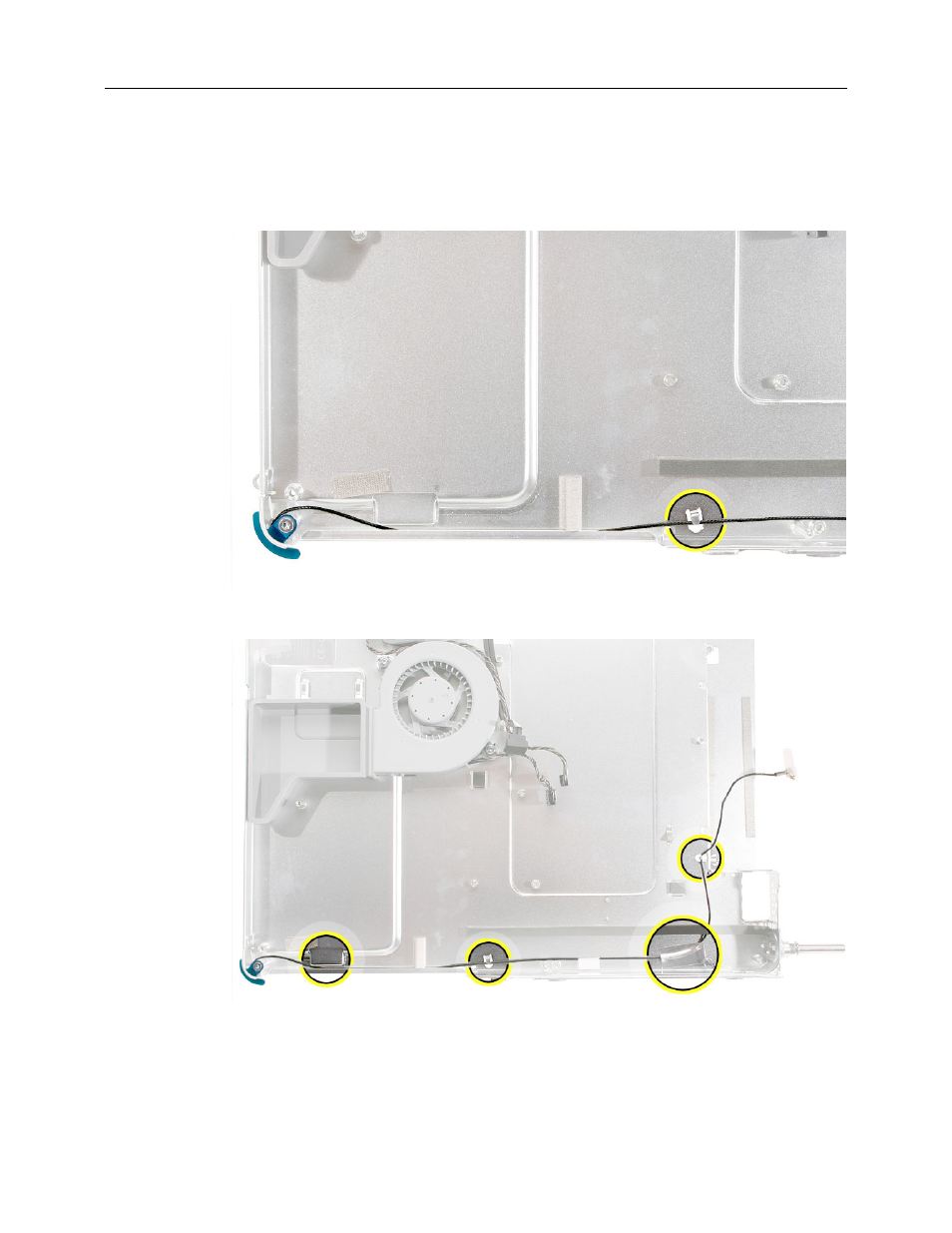

Route the antenna through the corner opening in the chassis, and replace the screw
first.
2.
Route the antenna cable through the mesh pad, cable guides, and tape.
3.
Replace the midplane chassis inside the display bezel.
4.
Replace the logic board.
5.
Replace the back cover.
