Apple iMac G5, 20-inch User Manual
Page 28
26 -
iMac G5 (20-inch) Take Apart
Microfoam Shim
6.
Slide the optical drive into place and press down near the tab to reconnect the drive.
7.

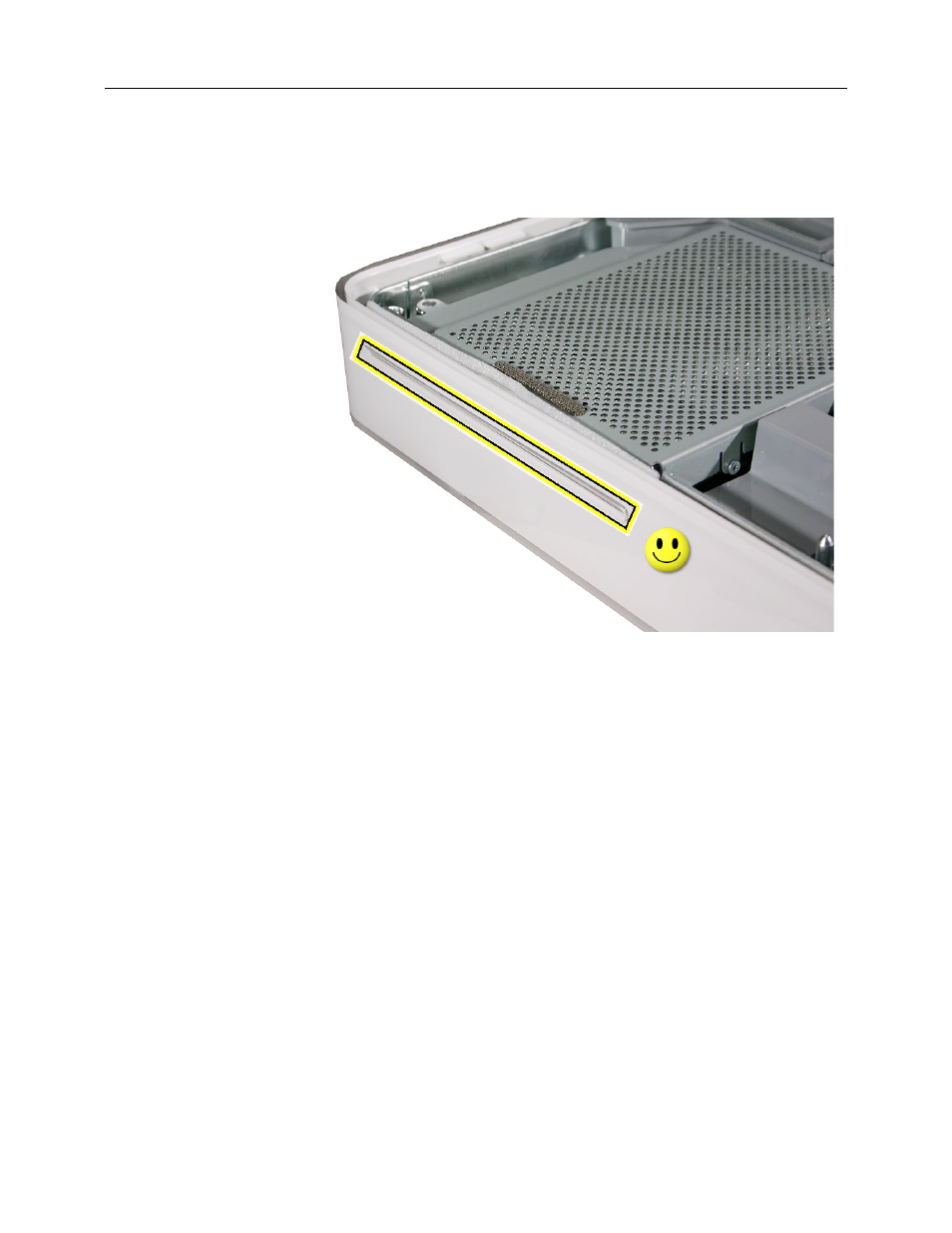

Make sure no microfoam is sticking out of the bezel.
Note:
Before reassembling the
computer, partially insert an optical disc to make sure it inserts smoothly.
8.
Replace the optical drive screws.
9.
Replace the back cover.
