iMac G5 (20-inch) Take Apart -

Midplane Assembly-Short Cut

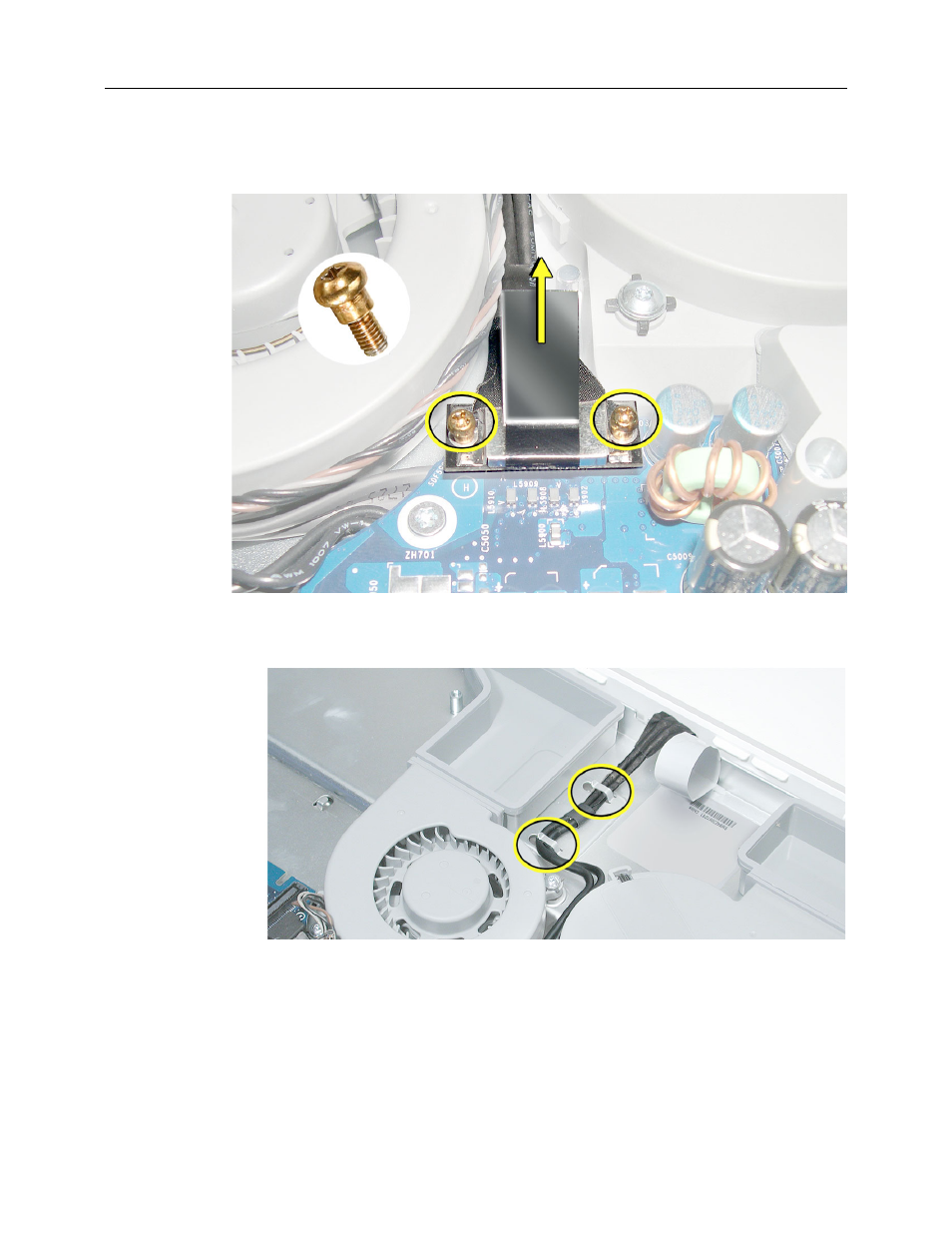

18. To disconnect the cable from the board, remove the two screws at the end of the cable

and pull up the black tab.

19. Release the cable from the metal cable clips (circled below)
