Apple iMac G5, 20-inch User Manual
Page 170
168 - iMac G5 (20-inch) Take Apart
Midplane Assembly-Short Cut

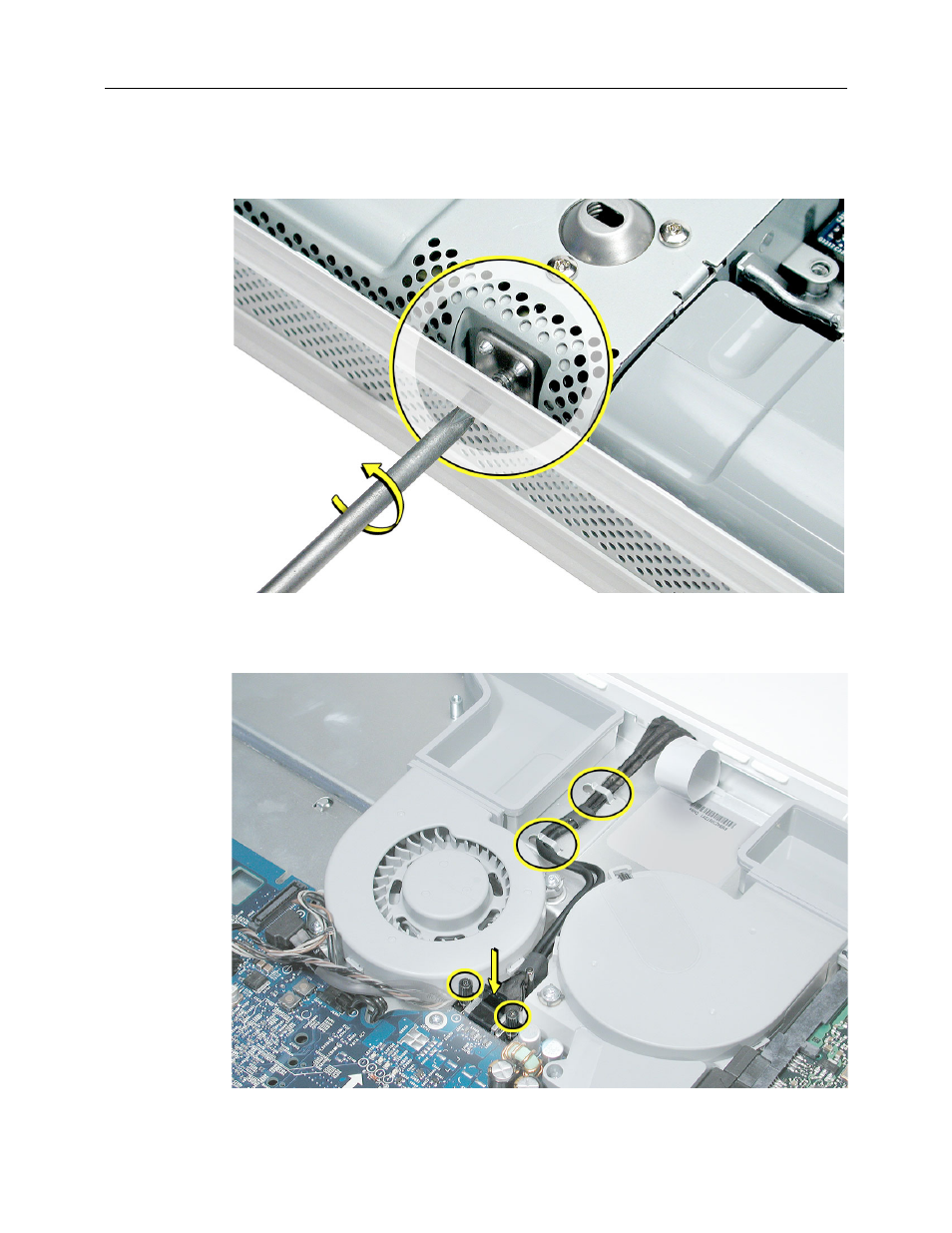

22. Turn the middle case screw counterclockwise about five revolutions. This step
prepares the back cover to be installed and secured.
23. Attach the black video cable connector to the board and replace the two screws. Make
sure the cable is tucked under the metal cable clips.
