Apple iMac G5, 20-inch User Manual
Page 38
36 -
iMac G5 (20-inch) Take Apart
Inverter
4.

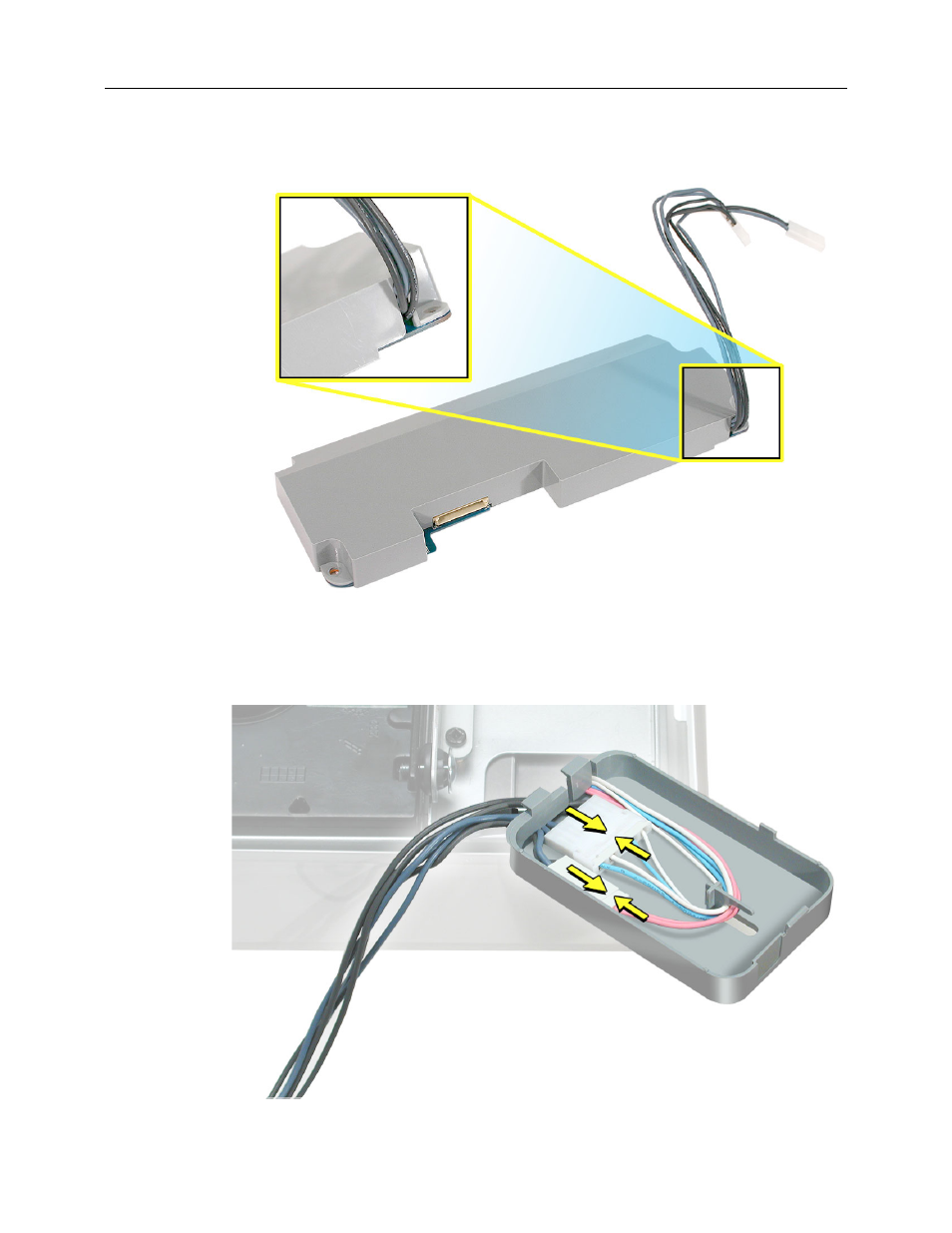

Turn over the inverter and cover. Pull the inverter cables up into the slot on the inverter
cover as shown.
Note:
This shows the revised inverter cover (July 2005).
5.
Locate the inverter cable cover. Connect the inverter cables as shown, making sure
the connectors lie flat inside the cable cover. Note: Route the cables through the cable
clips so that the darker cables are barely visible and have little slack.
