Apple iMac G5, 20-inch User Manual
Page 48
46 - iMac G5 (20-inch) Take Apart
Fans, Upper
9.

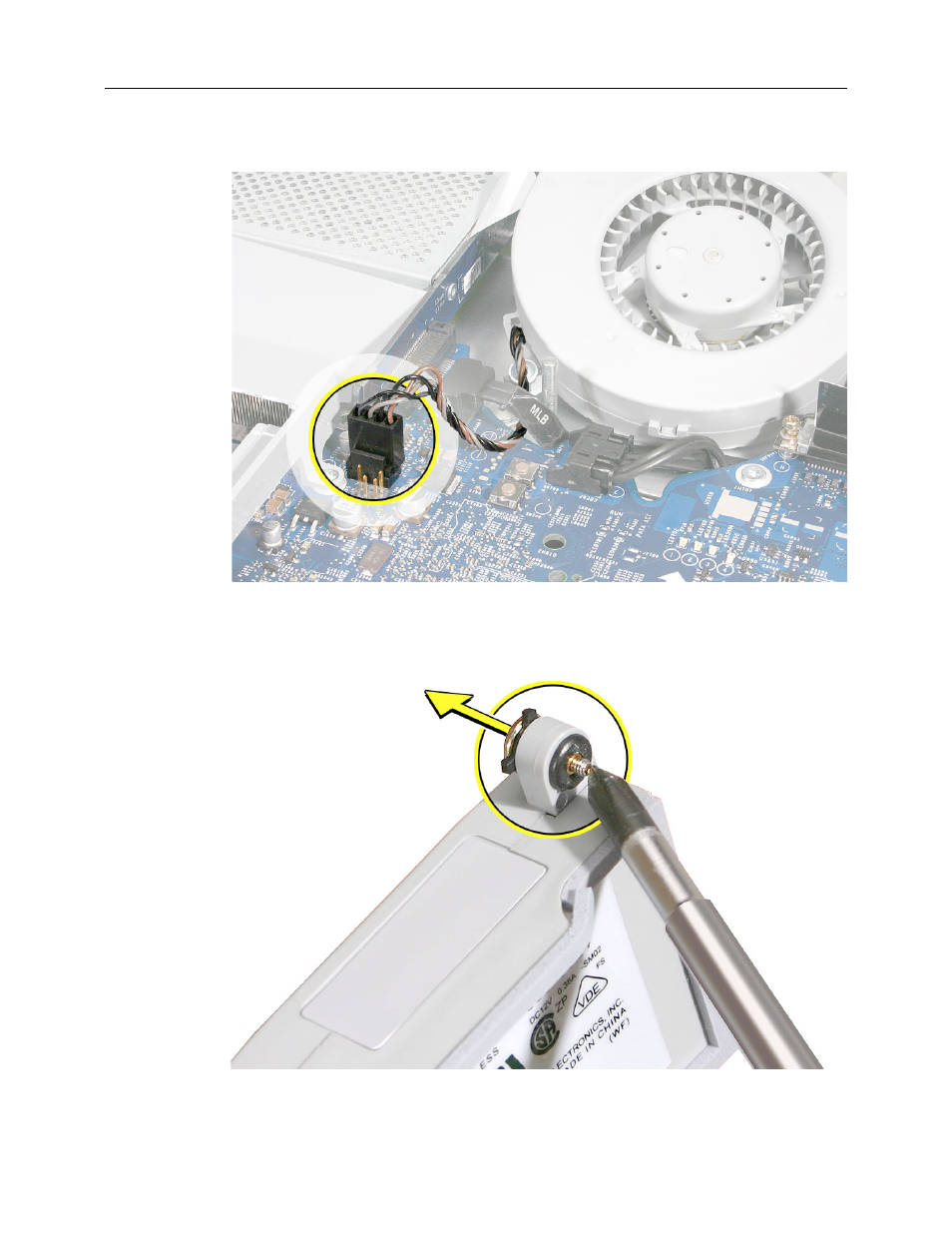

Disconnect the fan cable from the connector on the logic board. Pull on the black
connector, not on the cable.
10. LIft the fan out of the computer.
11. Remove the screws from the fan grommets. Using a screwdriver, push the fan screws
out of the grommets and set them aside. Use these screws on the replacement fan.
