Apple iMac G5, 20-inch User Manual
Page 68
66 - iMac G5 (20-inch) Take Apart
Logic Board
10.
Important

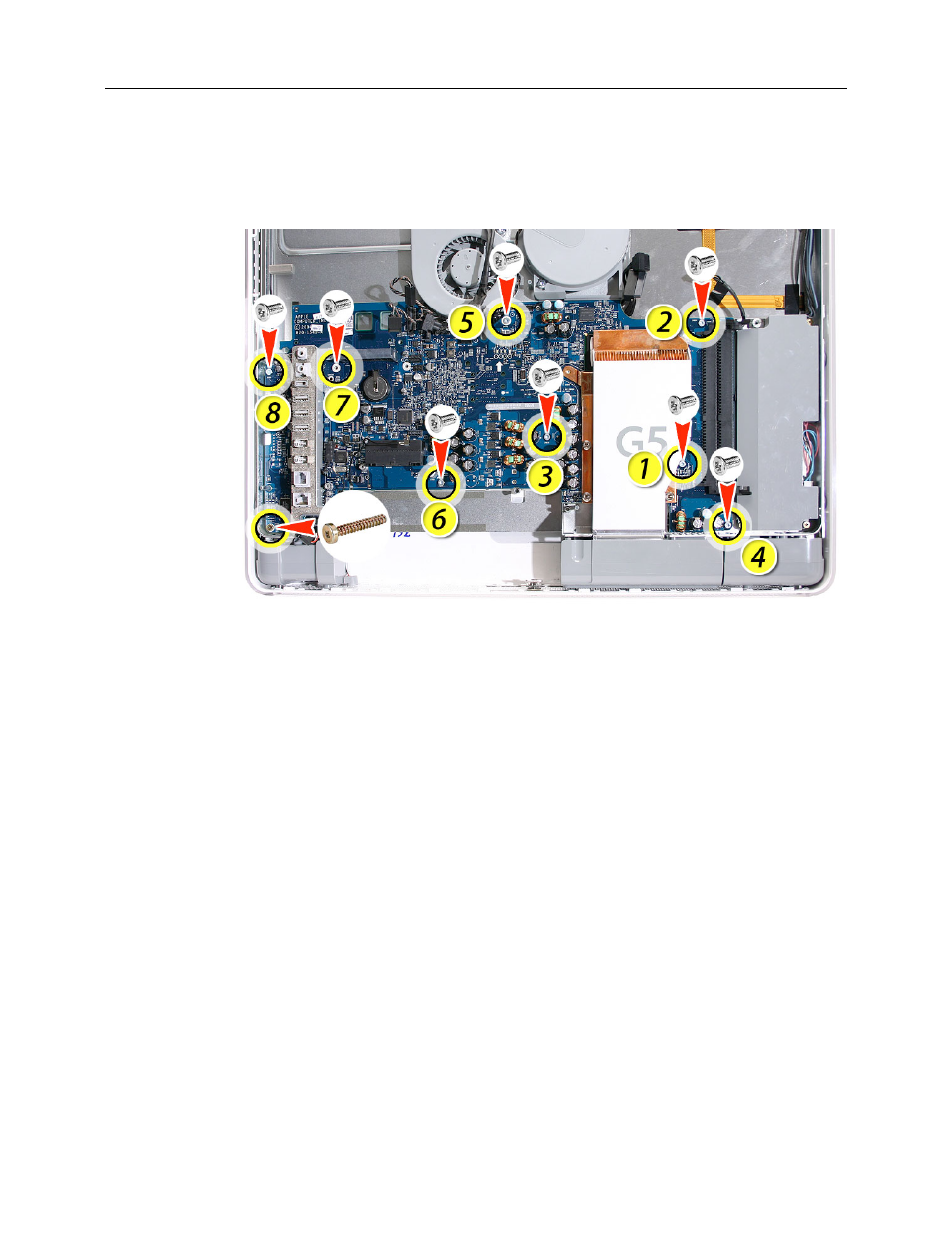

: Using a T-10 screwdriver, replace the logic board screws. Install the
screws in the numbered sequence shown below, starting with the screws nearest the
heatsink. Note: Make sure the hard drive cables are not obstructing the screw hole at
the top of the logic board. The hard drive cables run under the logic board.
9
