200 - iMac G5 (20-inch) Take Apart
Speaker Set
5.

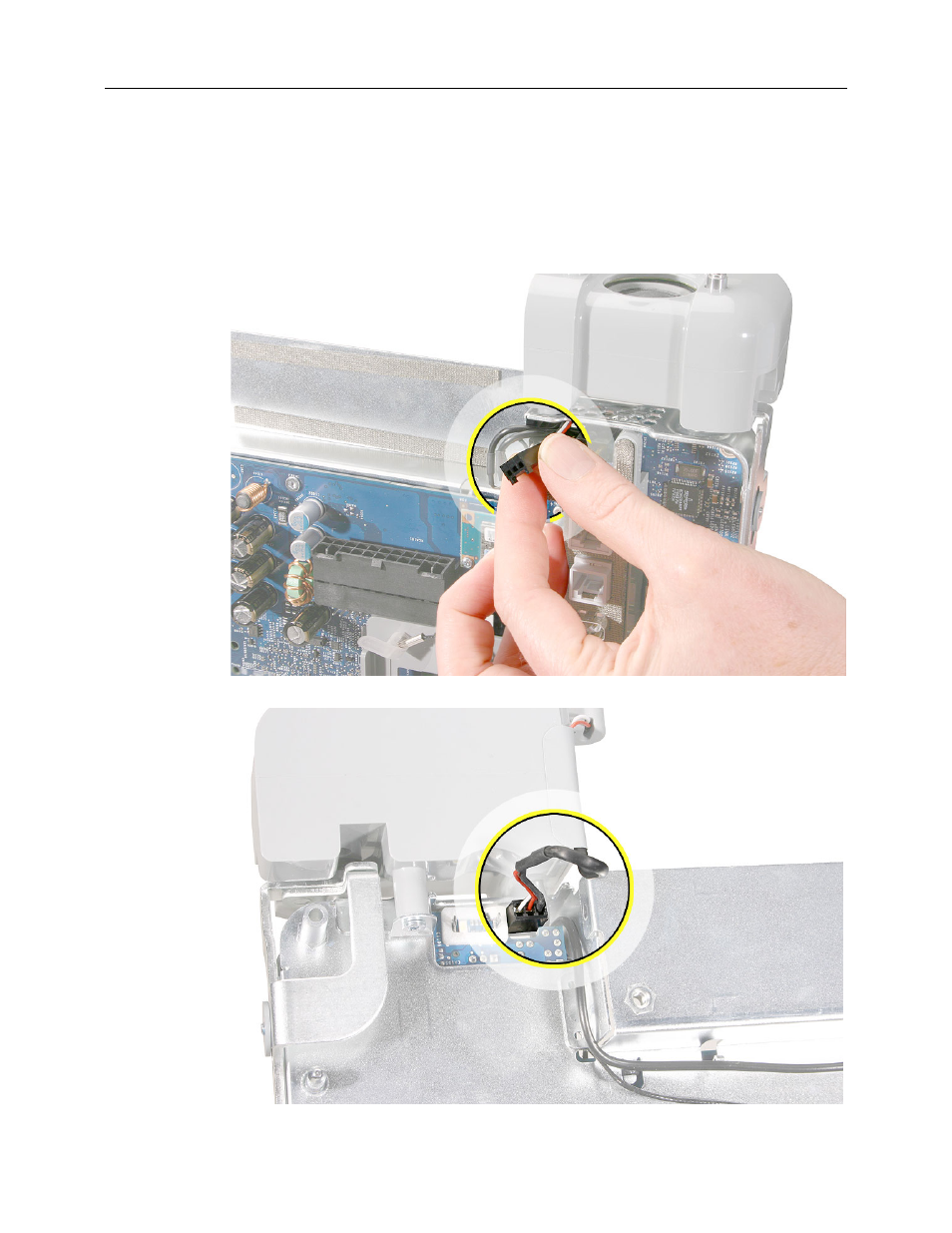

Route the narrower microphone cable connector through the opening in the midplane
chassis. Note: The images below show both sides of the midplane chassis.
Important: The microphone connector has two pegs. To enable routing, position the
connector so the two pegs point toward the logic board, and the flat side of the
connector is positioned away from the logic board.
