Removing the lower fan – Apple iMac G5, 20-inch User Manual
Page 210
208 - iMac G5 (20-inch) Take Apart
Lower Fan
Removing the Lower Fan

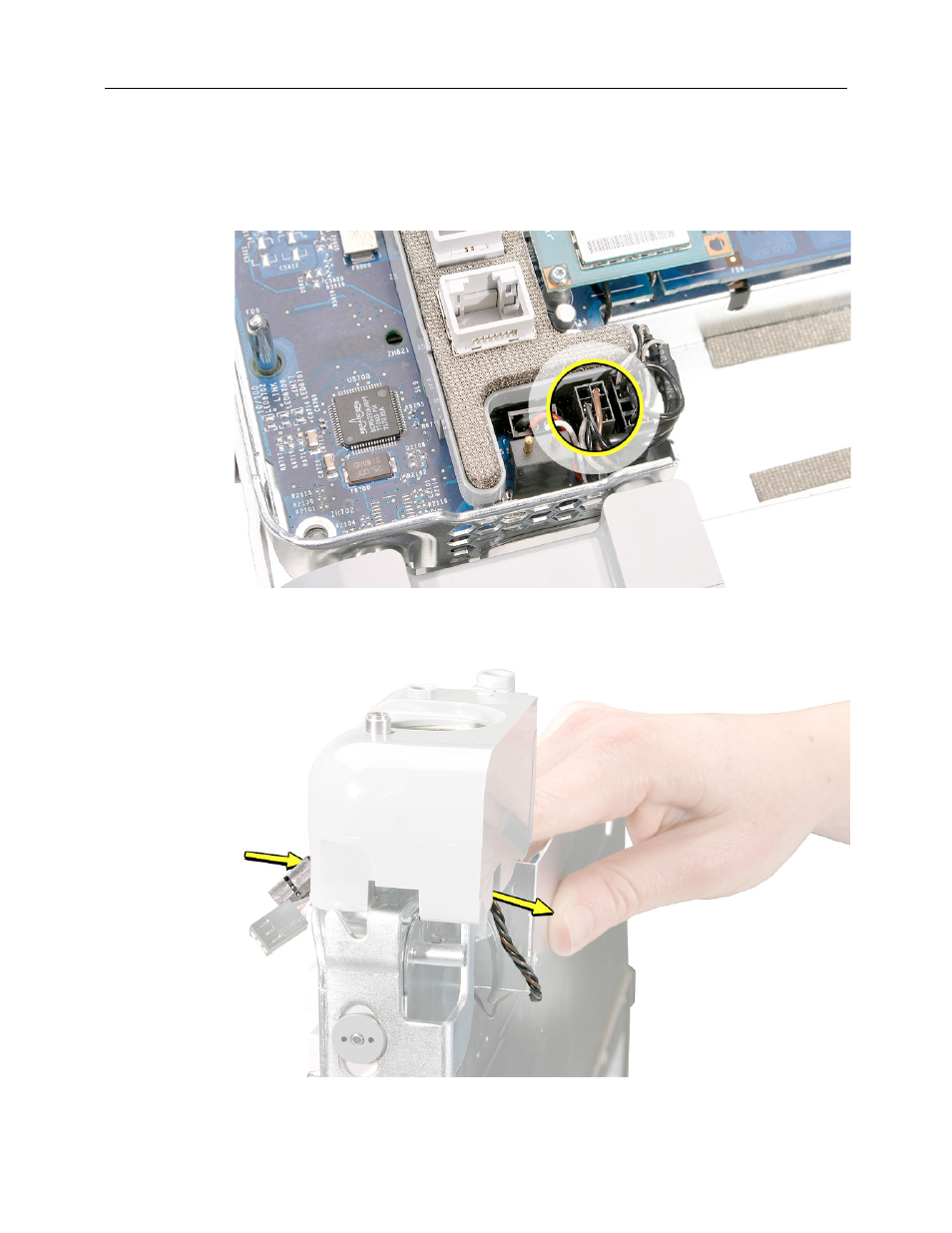

1.
From the top of the logic board at the bottom of the port bank, use a needlenose pliers
to disconnect the fan cable connector.
2.
Place the midplane upright, and while holding the other cables aside, route the fan
cable and connector through the opening in the midplane chassis.
