190 - iMac G5 (20-inch) Take Apart
Light Pipe with Gasket
Replacing the Light Pipe with Gasket
1.
Peel the adhesive backing off of the narrower end of the light pipe.
2.

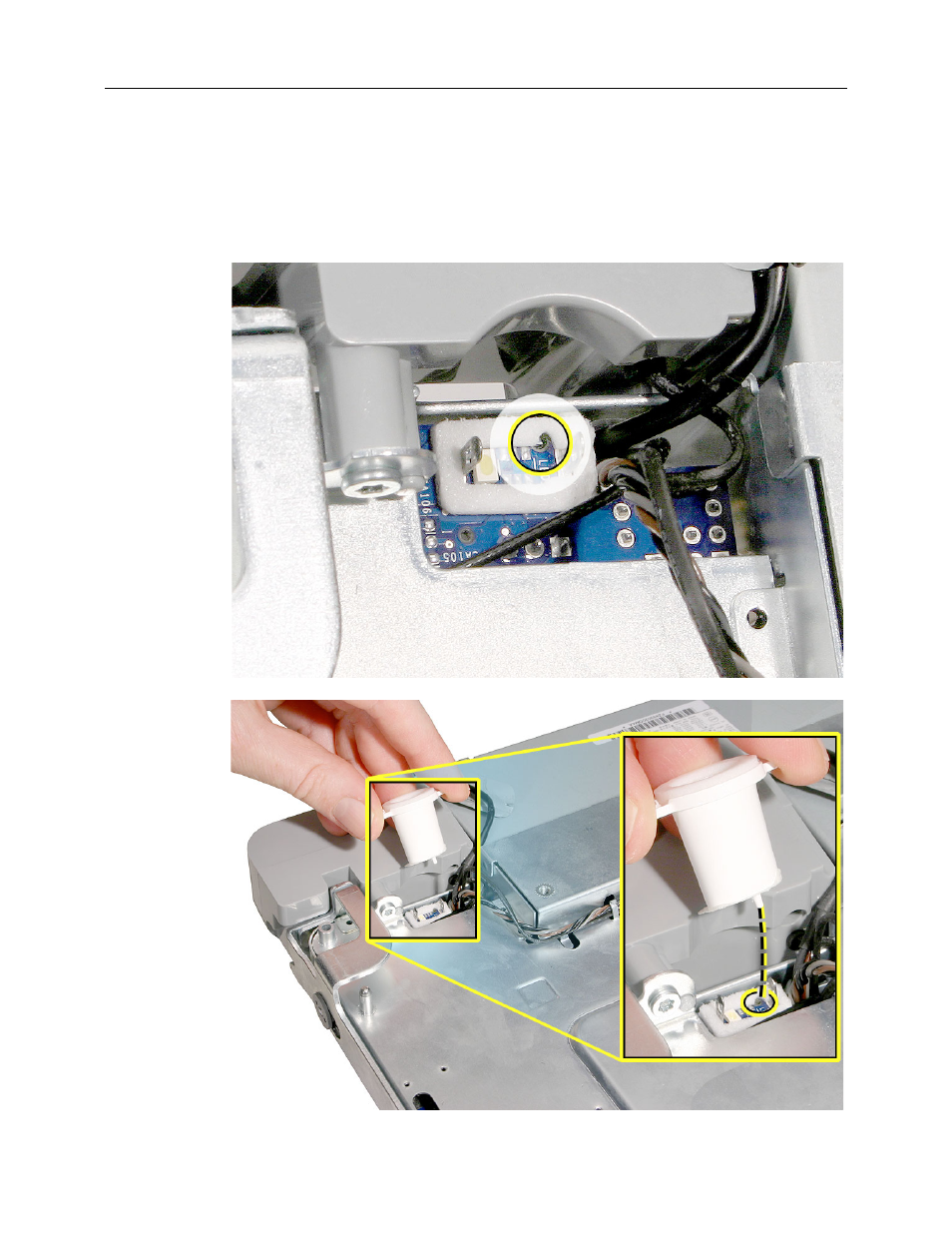

Note the small plastic pin on the outer ring of the light pipe. Position the light pipe over
the logic board so that the pin aligns with the hole in the logic board.
