Apple iMac G5, 20-inch User Manual
Page 129
iMac G5 (20-inch) Take Apart -
Midplane Assembly

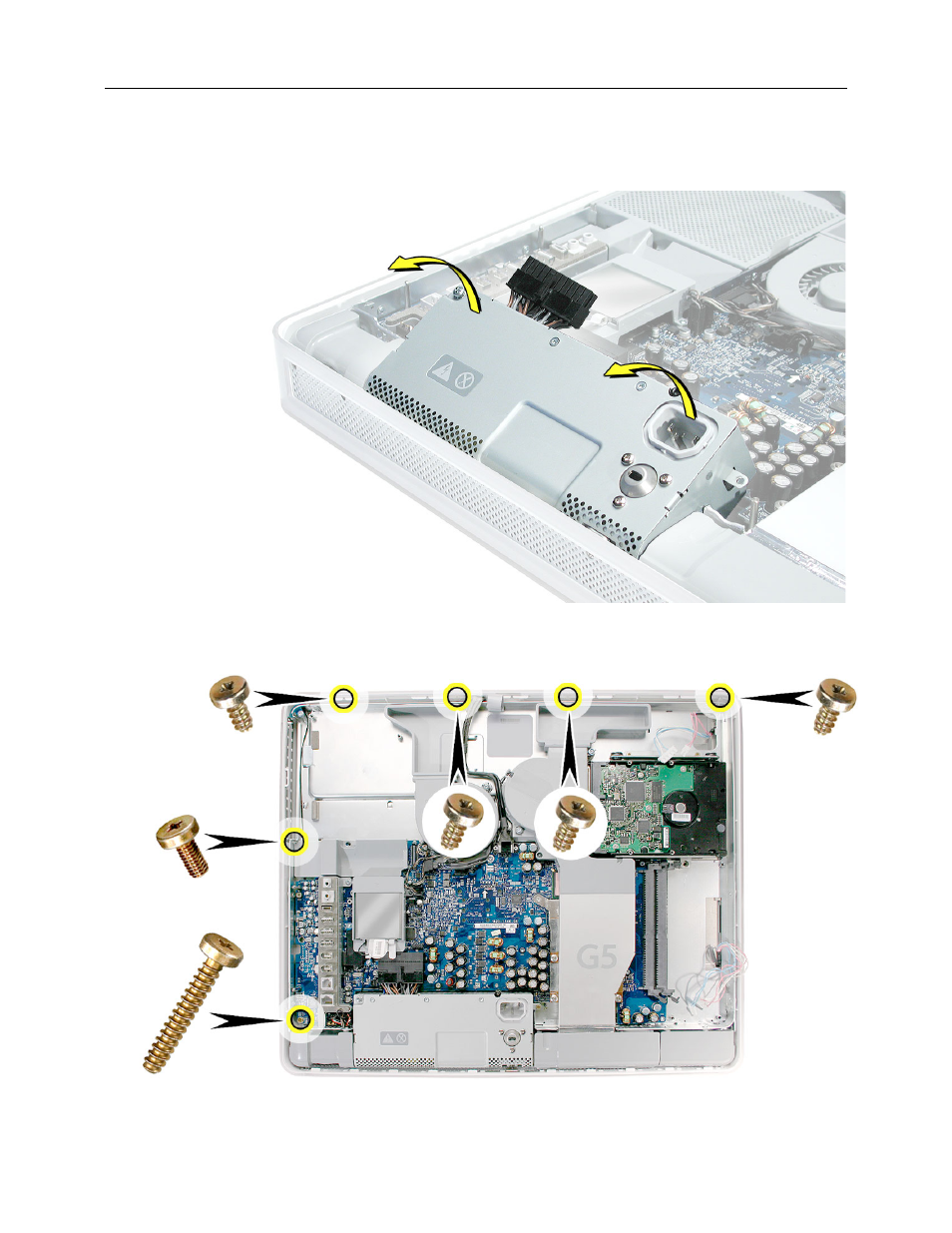

30. Tilt up the power supply until it clears the edge of the main circuit board. Lift it out of
the computer and set it aside.
31. Remove the six screws (four identical, short, brass-colored screws in the channel
along the top, and two screws on the left side of the board).
