Apple iMac G5, 20-inch User Manual
Page 161
iMac G5 (20-inch) Take Apart -
Midplane Assembly-Short Cut
3.

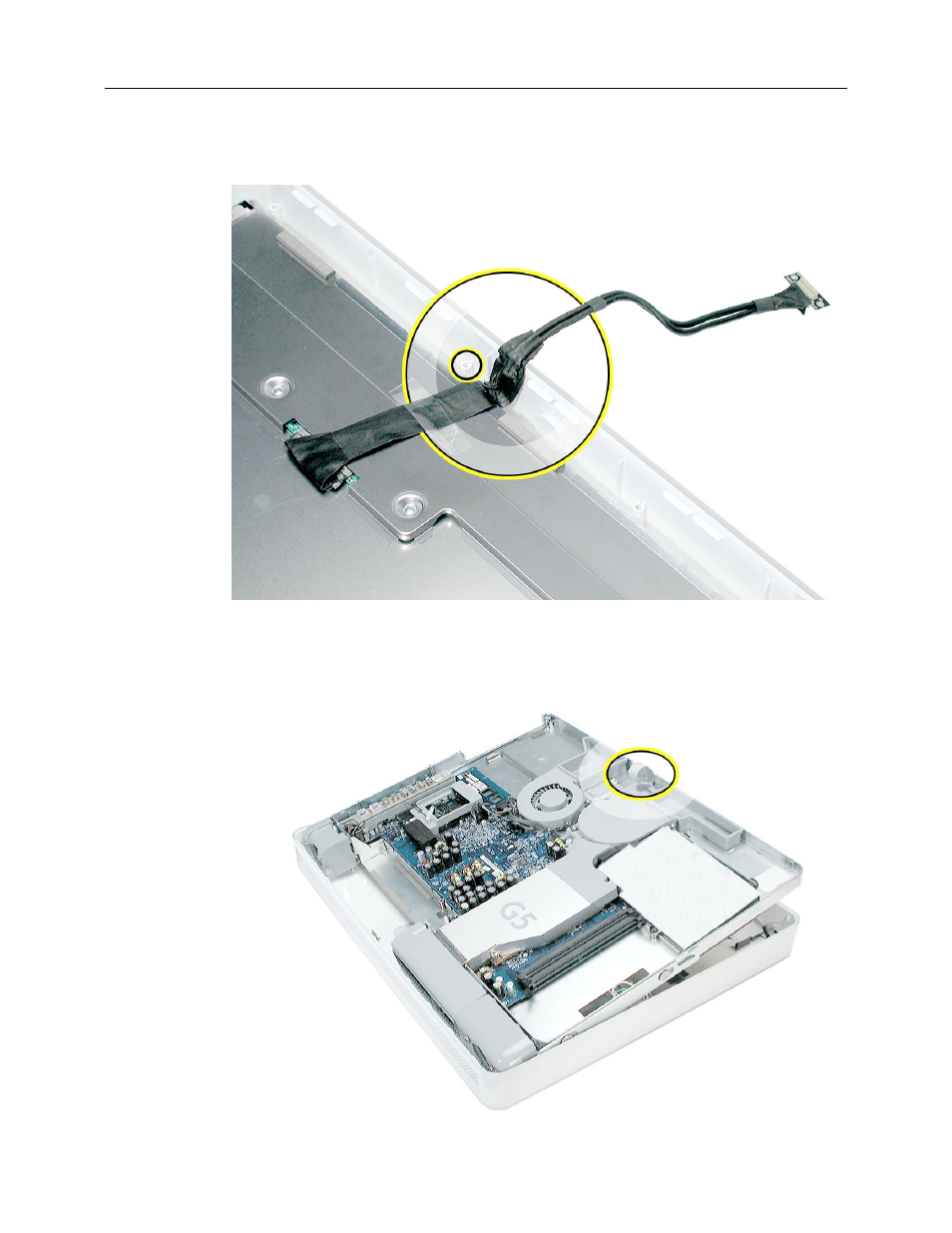

Make sure that the black video cable is tucked into the groove on the bezel as shown.
Use the screw hole (smaller circle) as a guide for the cable placement.
4.
Position the midplane over the display/bezel assembly housing.
5.
Lower the midplane into the display/bezel assembly housing. Use the tab (circled) to
lift and adjust the midplane into the housing.
