102 - iMac G5 (20-inch) Take Apart
Bluetooth Board
Removing the Bluetooth Board
1.

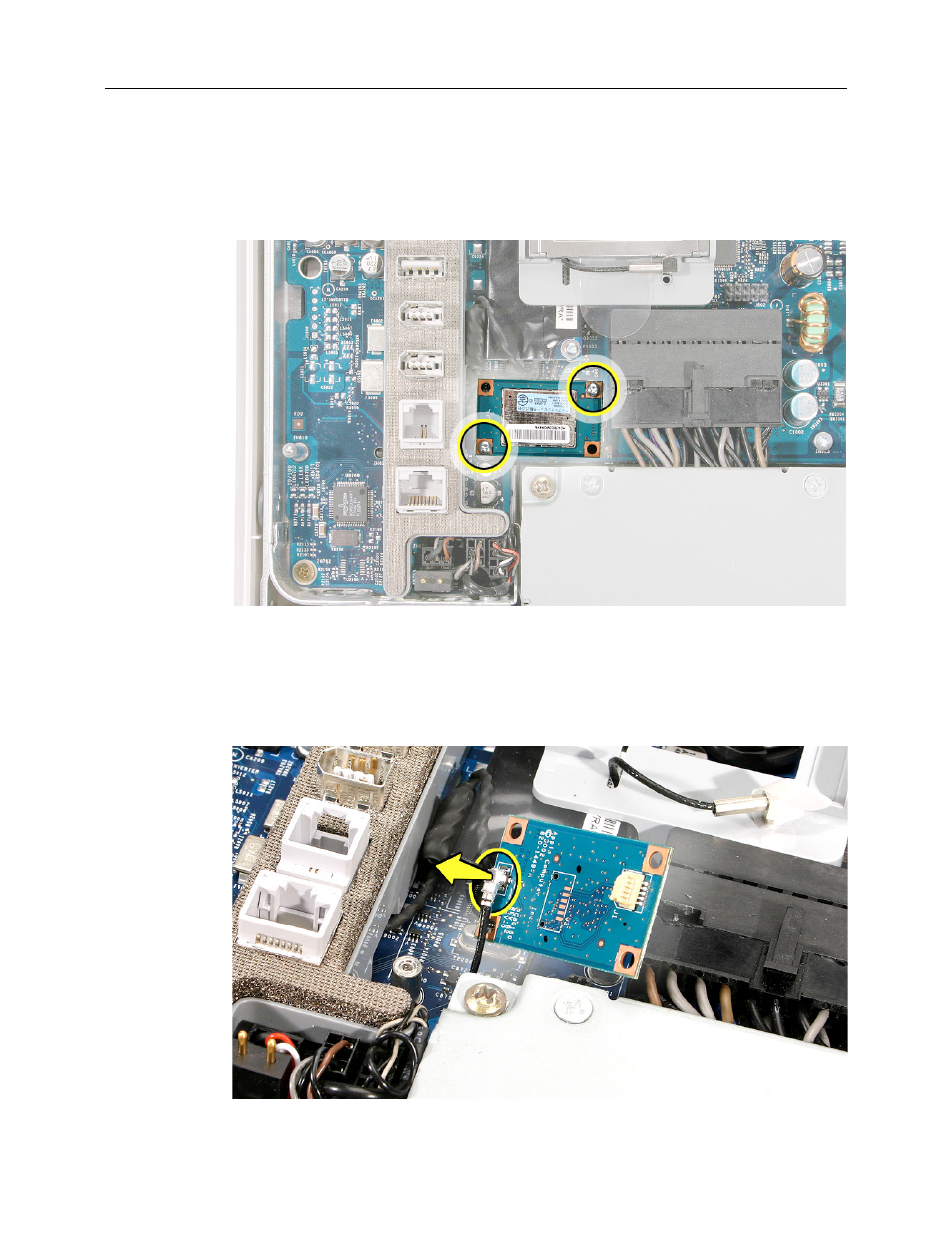

Locate the Bluetooth board.
2.
Remove the two identical T6 screws.
3.
Holding the top and bottom edge of the board, lift the Bluetooth board straight up to
disconnect it from the logic board.
4.
Turn over the board, and grasp the metal end of the connector. To disconnect the
Bluetooth cable, pull the connector straight off the board.
