Apple iMac G5, 20-inch User Manual
Page 187
iMac G5 (20-inch) Take Apart -
Front Bezel
6.

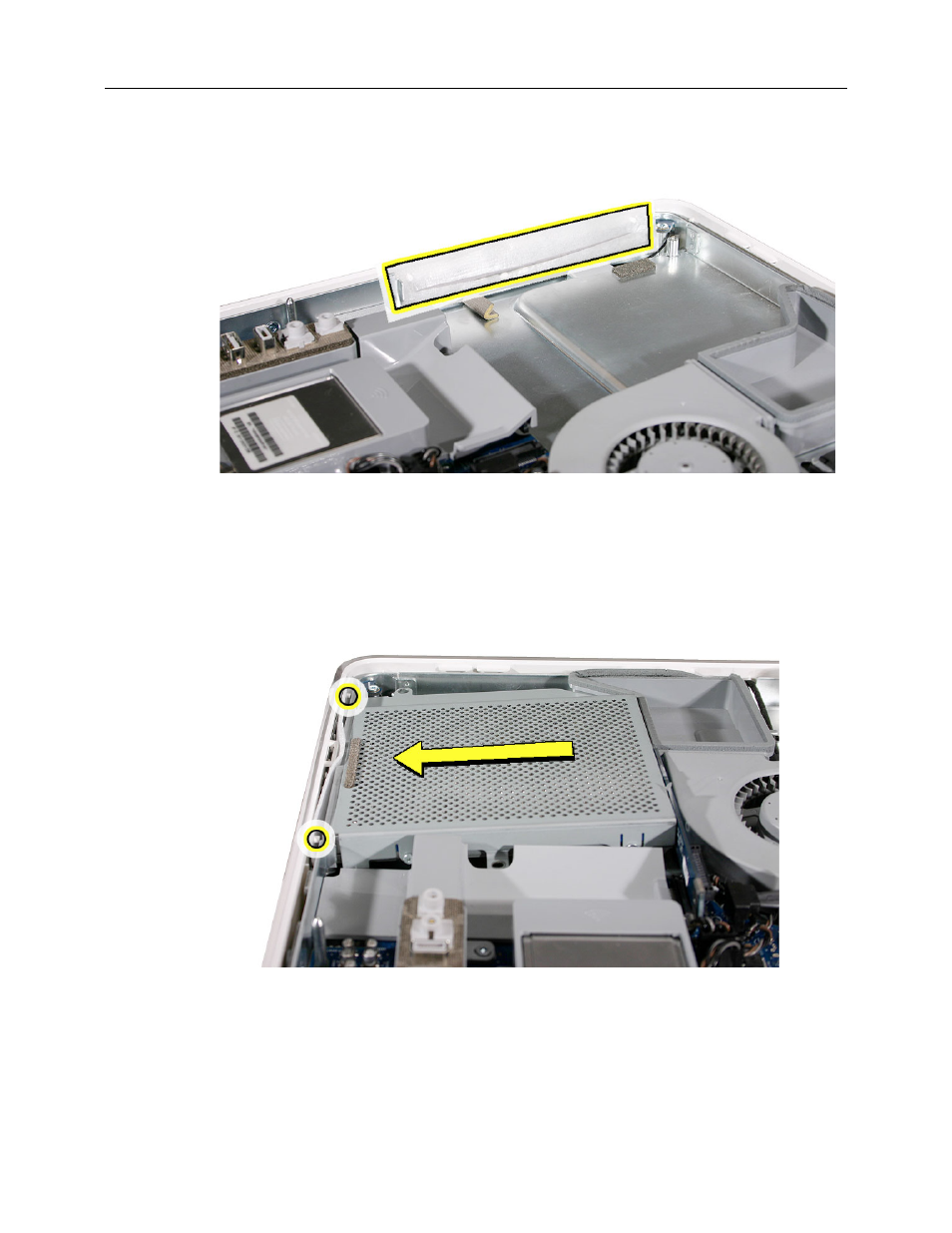

Tuck the mircofoam into place before installing the optical drive.
7.
Remove the replacement optical drive from its packaging.
8.
Replace the optical drive in the direction of the arrow, lining up the white posts on the
bezel with the holes on the optical drive bezel.
