Replacing the modem board – Apple iMac G5, 20-inch User Manual
Page 112
110 - iMac G5 (20-inch) Take Apart
Modem Board

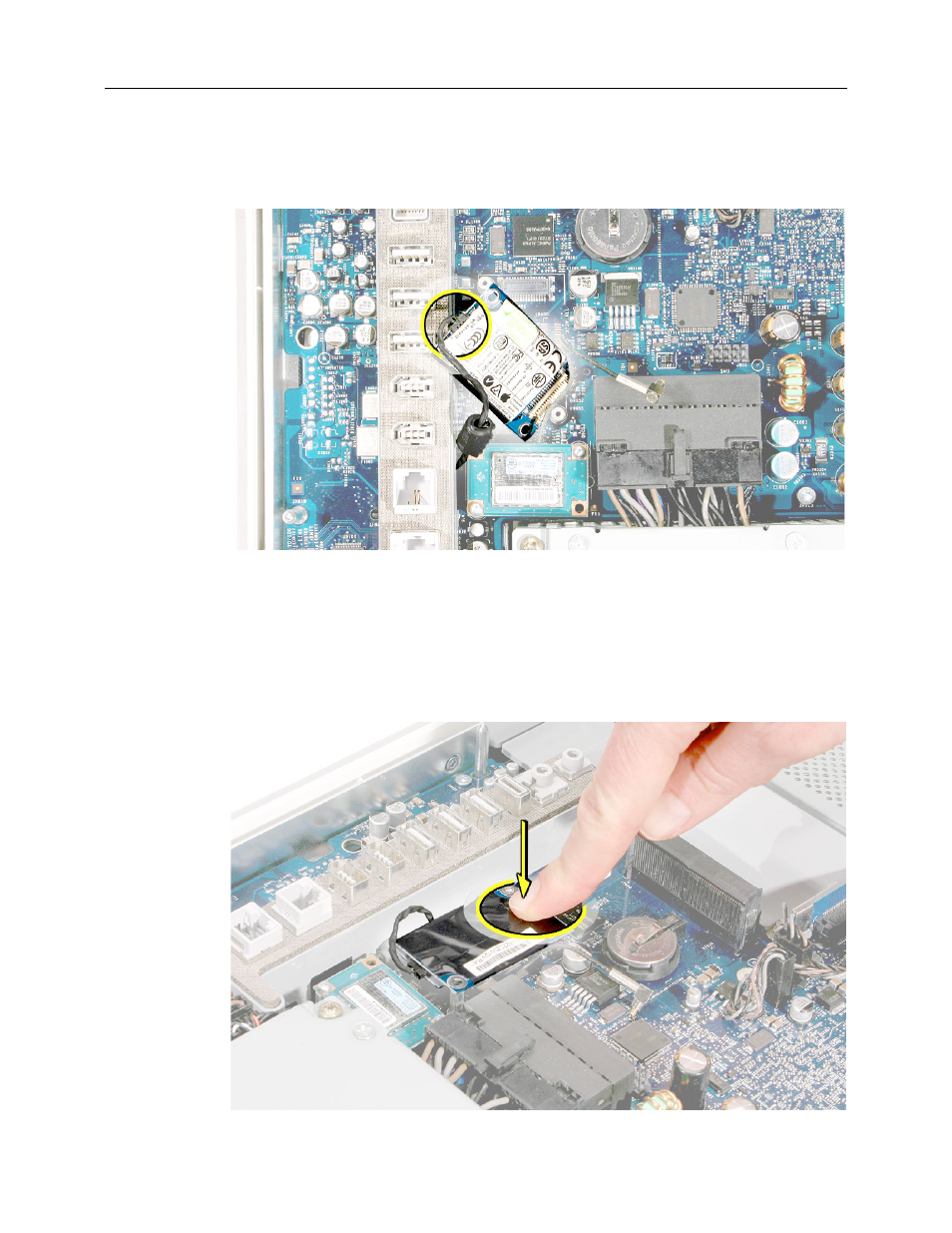

Replacing the Modem Board
1.
Connect the modem cable.
2.
Route the cable with ferrite bead between the modem and the port bank.
3.
Holding the top and bottom edges of the board, align the screw holes over the
standoffs on the logic board. Then press down on the area of the board that is over the
connector.
Caution: Do not press on any other areas of the modem board.
