70 - iMac G5 (20-inch) Take Apart
Logic Board

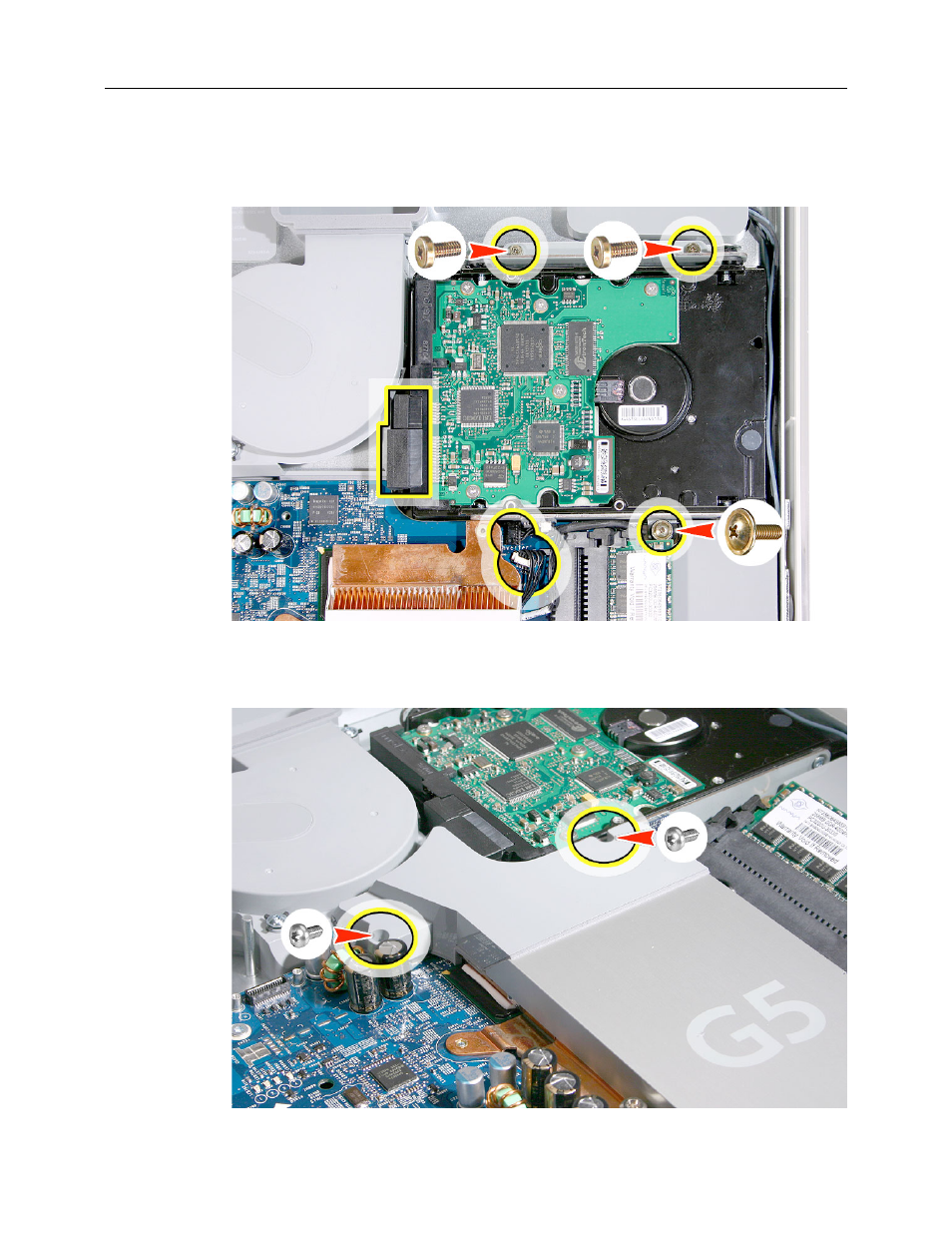

17. Connect the hard drive data and the hard drive power cables on the left side. Next,
connect the thermal sensor and the inverter cable (located near the copper heatpad).
Lastly, replace the three hard drive screws.
18. Using a T-8 screwdriver, replace the two fan duct screws. Note: These two screws are
longer than the other silver screws securing the logic board to the midplane chassis.
