Apple iMac G5, 20-inch User Manual
Page 137
iMac G5 (20-inch) Take Apart -
Midplane Assembly

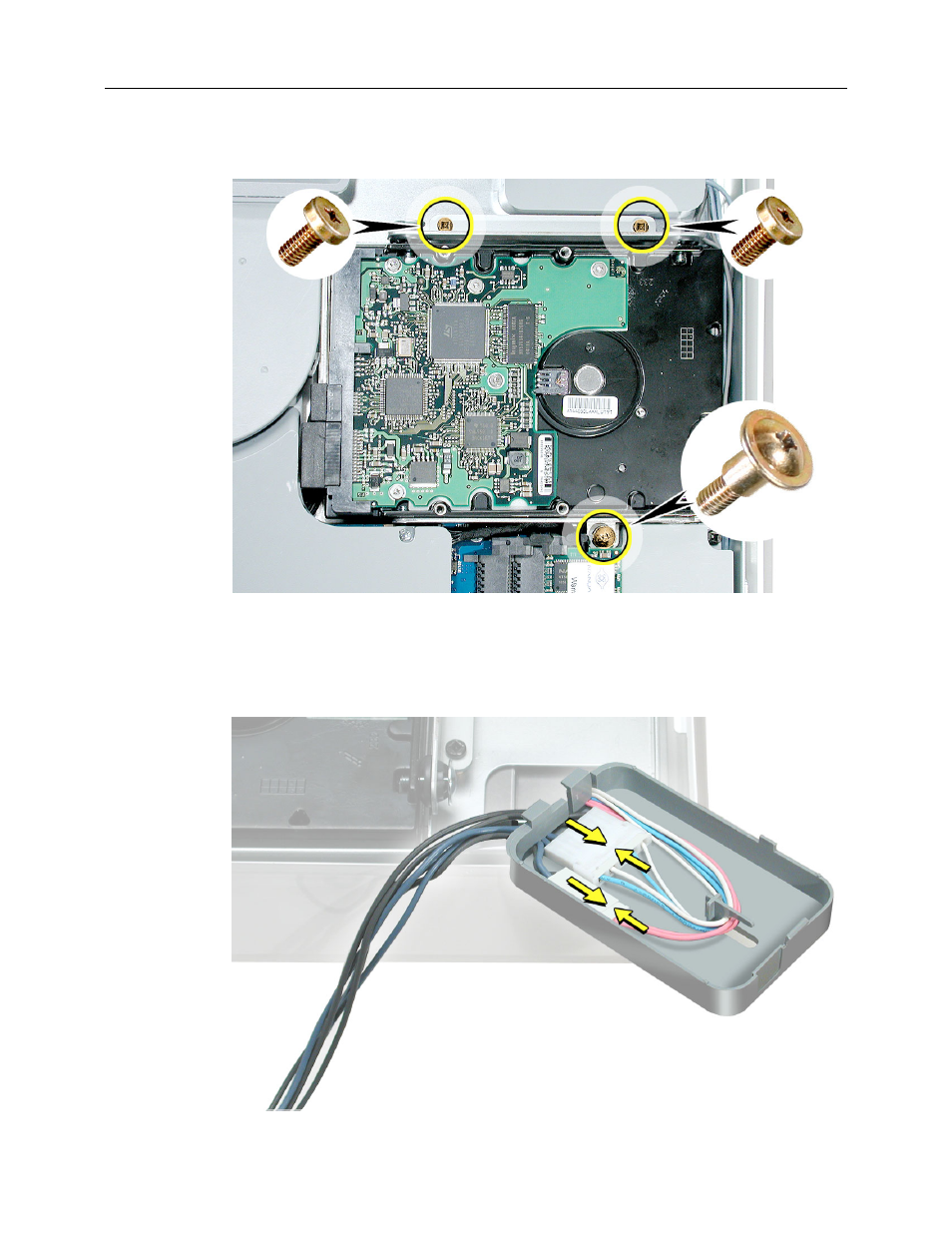

10. Replace the hard drive screws. The smaller screws attach on the top side.
11. Locate the inverter cable cover. Connect the inverter cables as shown, making sure
the connectors lie flat inside the cable cover. Note: Route the cables through the cable
clips so that the darker cables are barely visible and have little slack.
