164 - iMac G5 (20-inch) Take Apart
Midplane Assembly-Short Cut

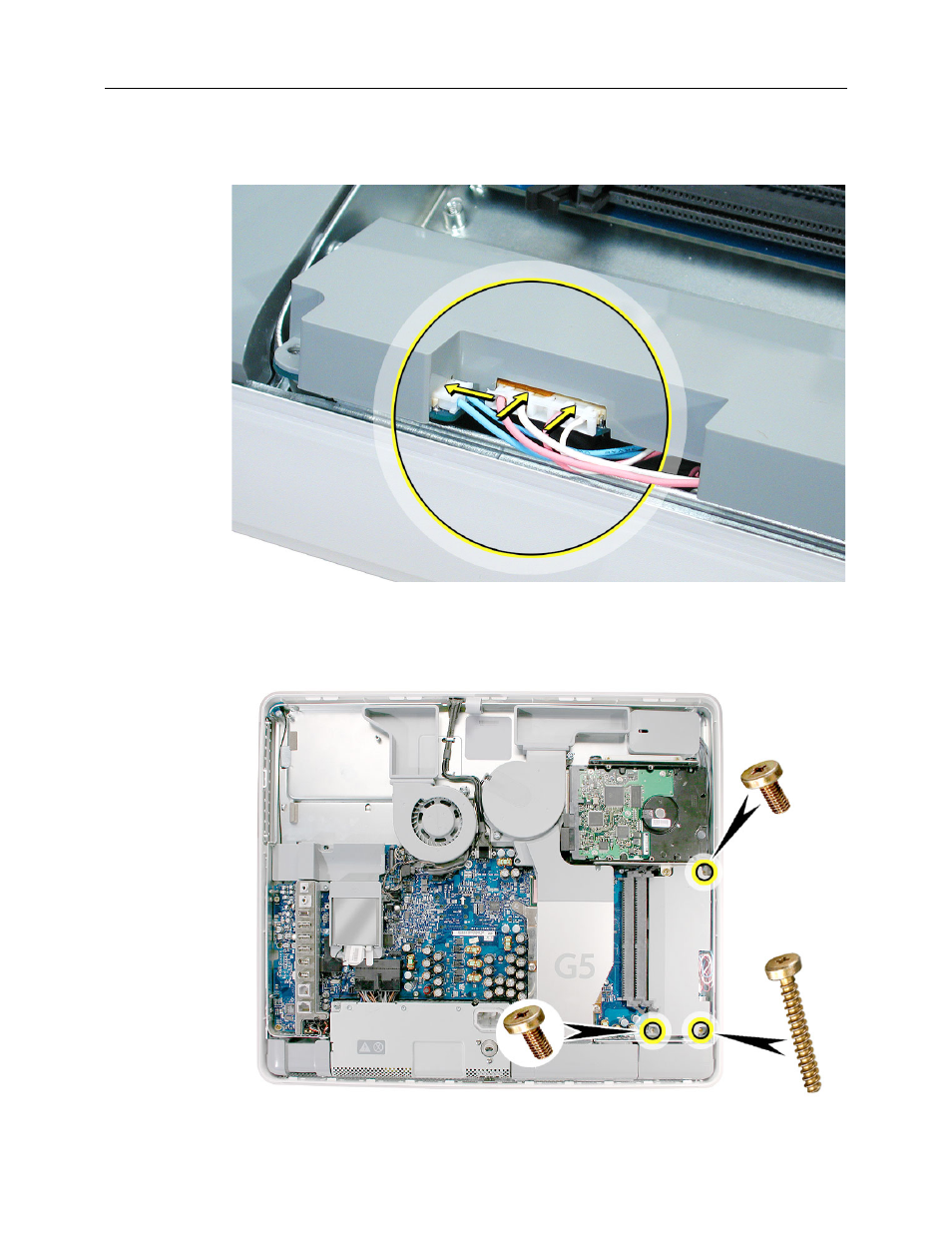

14. Connect the inverter cables, connecting the larger connector first. Note: The
connectors are keyed, and plug in only one way.
15. Install the gray plastic inverter at a slight angle as if it were sliding under the memory
slots. Replace the three screws.
