Apple iMac G5, 20-inch User Manual
Page 204
202 - iMac G5 (20-inch) Take Apart
Speaker Set
8.

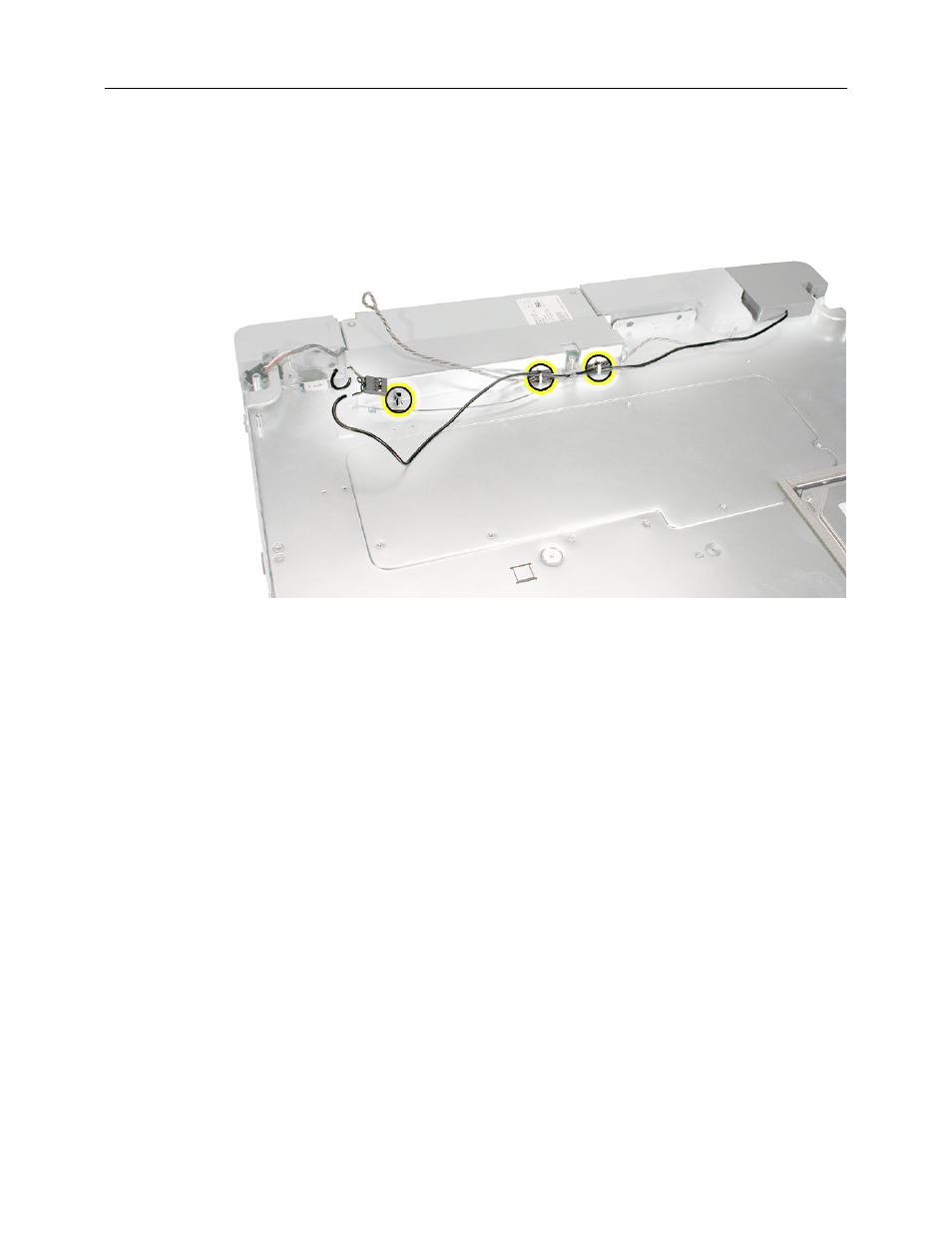

Without straining the speaker or fan cable, use a flat-blade screwdriver to carefully lift
up the cables from the three cable guides on the underside of the midplane chassis.
Caution: Use the flat-blade screwdriver to open the cable guides only enough to
slide out the cables. Do not over-extend the cable guides.
