iMac G5 (20-inch) Take Apart
Replacing the Back Cover
Replacing the Back Cover
Tools
Use the screwdriver provided, or a Phillips #1 screwdriver
Procedure
1.
Remove the replacement back cover and foot from its packaging.
2.

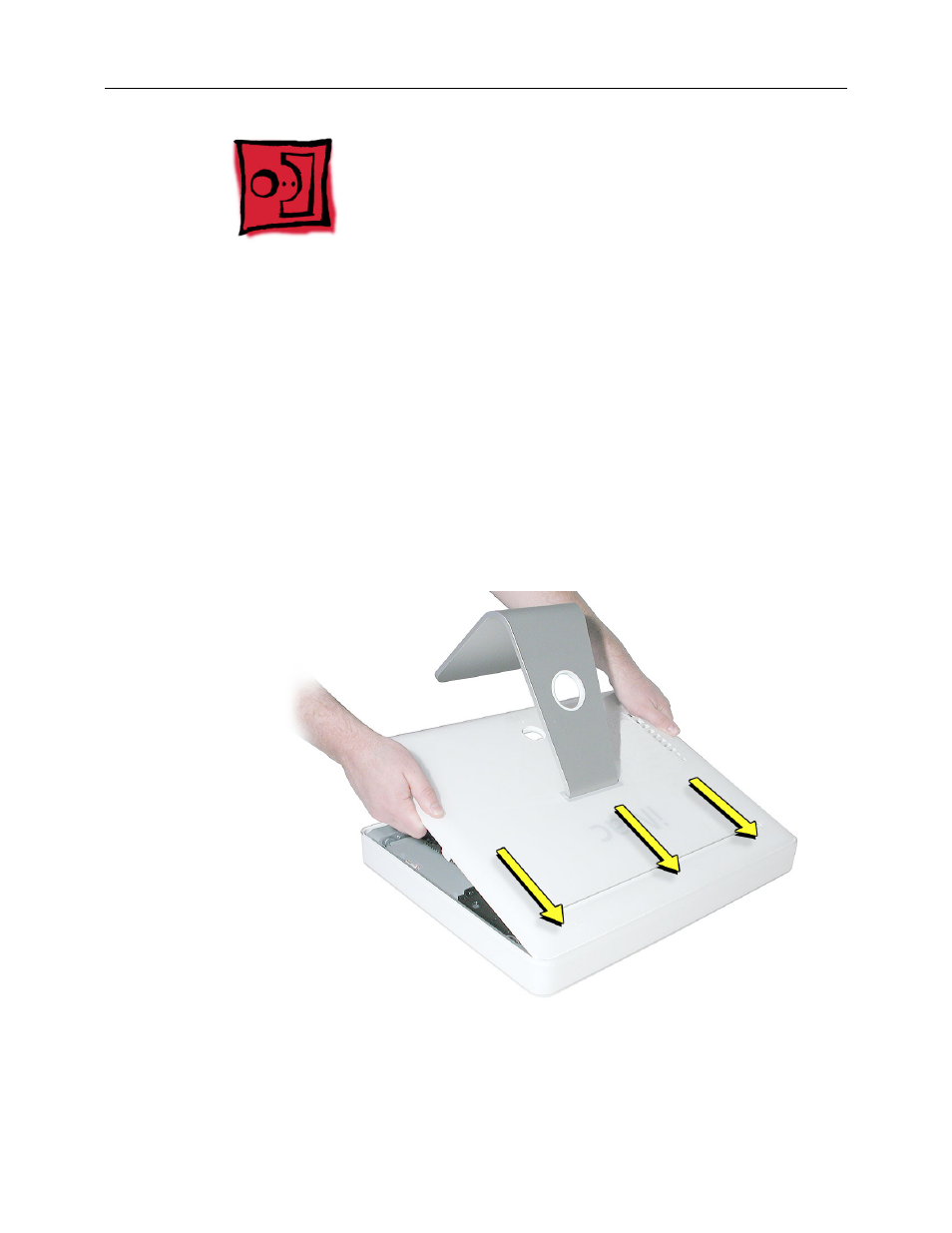

Replace the cover so that the slots on the top edge of the back cover mate with the
tabs on the display housing.
