iMac G5 (20-inch) Take Apart
Inverter

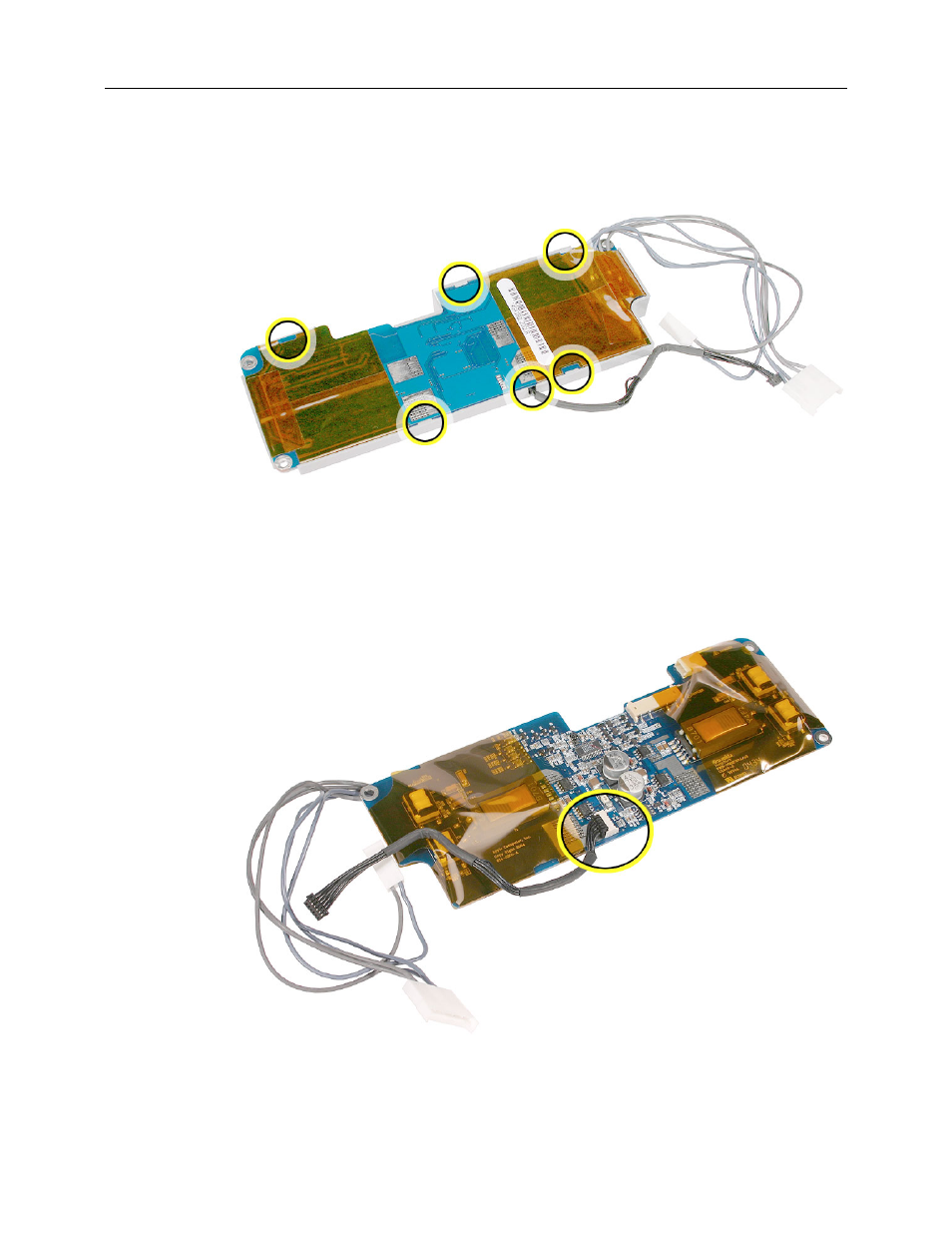

15. Turn over the inverter as shown. Using your fingers or a flatblade screwdriver, remove
the gray plastic inverter cover by prying the tabs (circled below) away from the board.
16. Turn the inverter board over. Disconnect the black cable and transfer it to the
replacement inverter.
