Apple iMac G5, 20-inch User Manual
Page 197
iMac G5 (20-inch) Take Apart -
Microphone Cable
4.

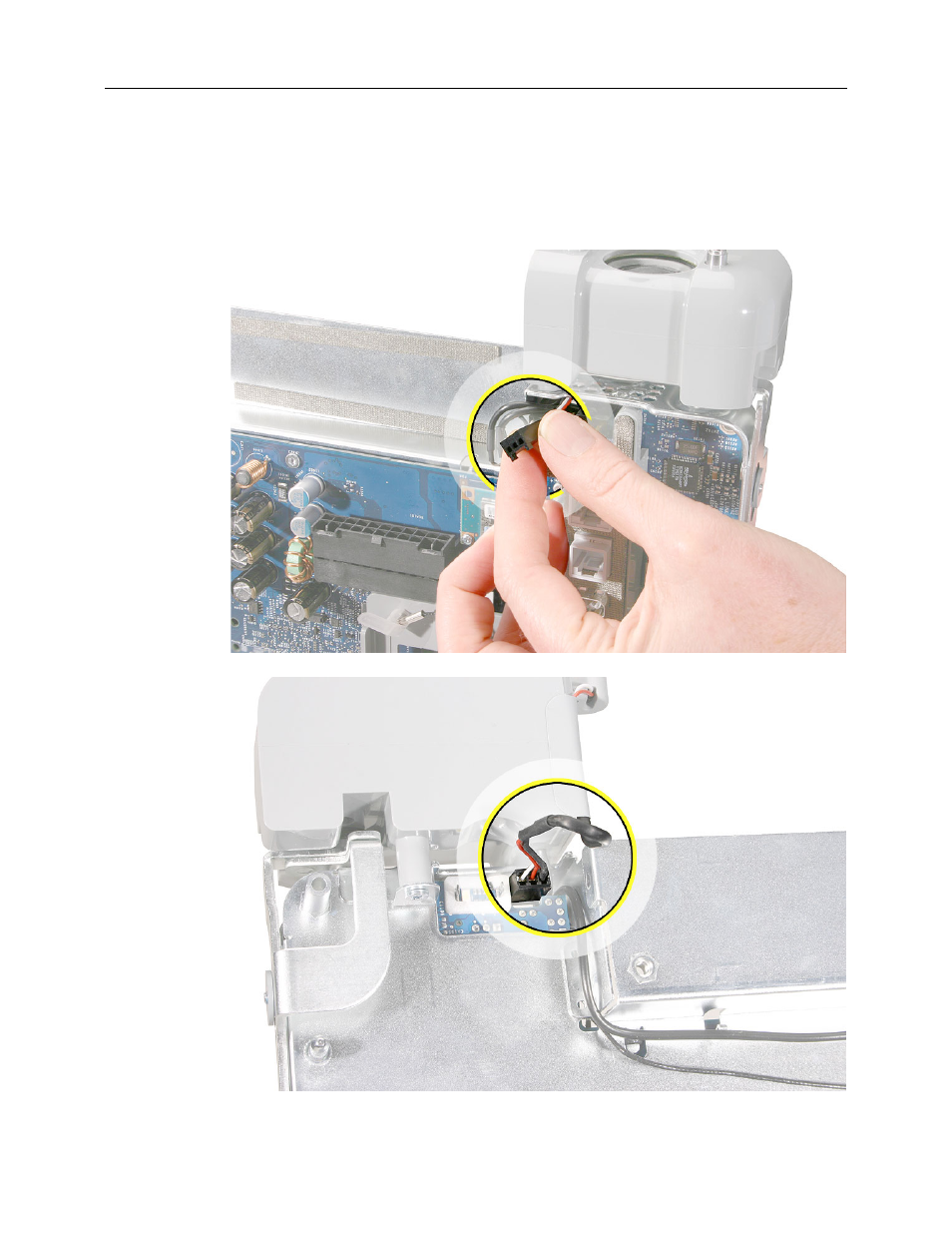

Route the microphone cable connector through the midplane chassis opening.
Important: The microphone connector has two pegs. To enable routing, position the
connector so the two pegs point toward the logic board, and the flat side of the
connector is positioned away from the logic board.
