58 - iMac G5 (20-inch) Take Apart
Logic Board
5.

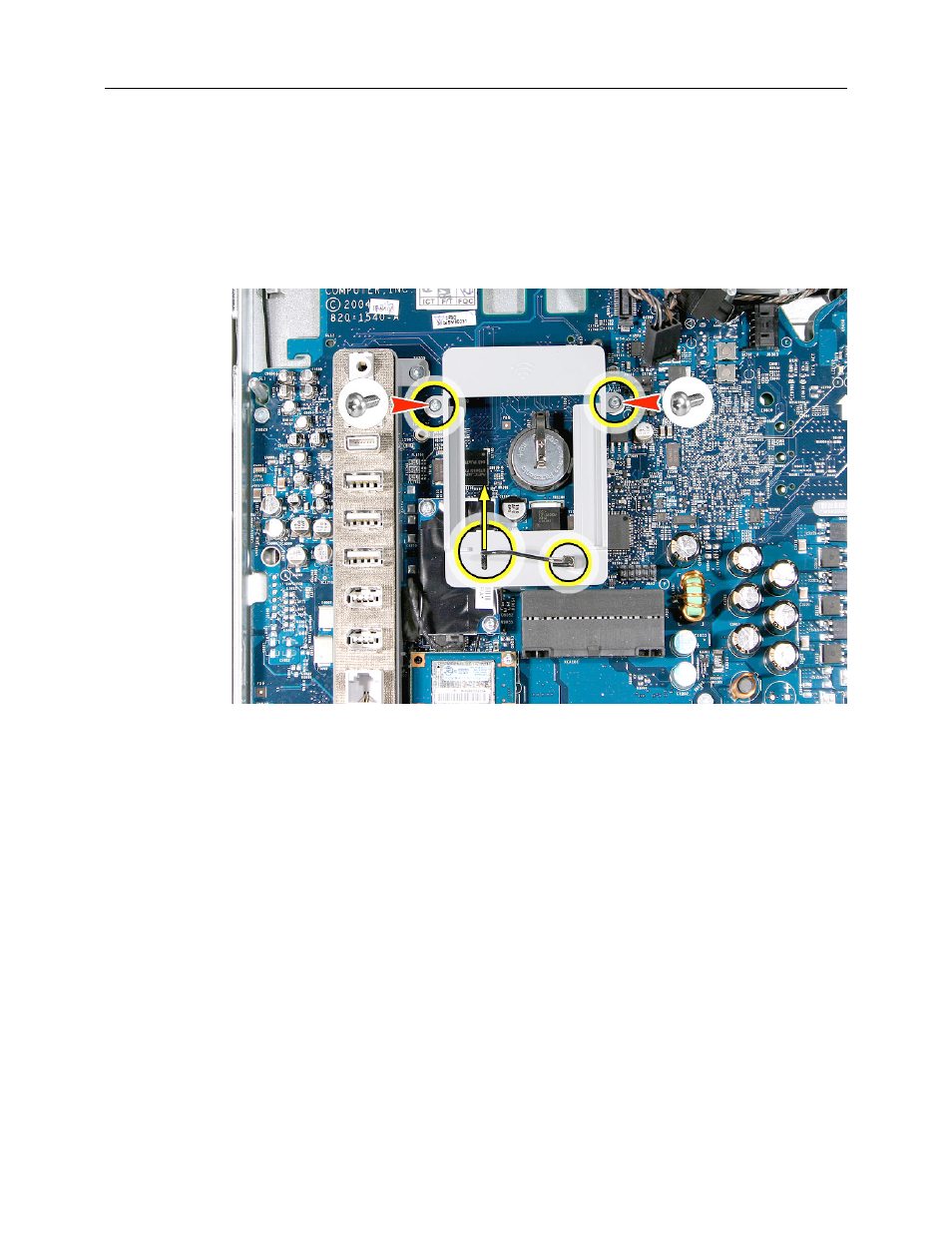

On the left side of the board:
• use a T-6 screwdriver to remove the two screws on the Airport Extreme card guide
• disconnect the AirPort antenna cable (from the AirPort Extreme card or from the
card guide) and slide the AirPort antenna out of the slot on the card guide
• lift the AirPort card guide off the logic board
• disconnect the power supply if you haven’t done so already. Note: The power
supply has been removed in this graphic.
