154 - iMac G5 (20-inch) Take Apart

Midplane Assembly-Short Cut

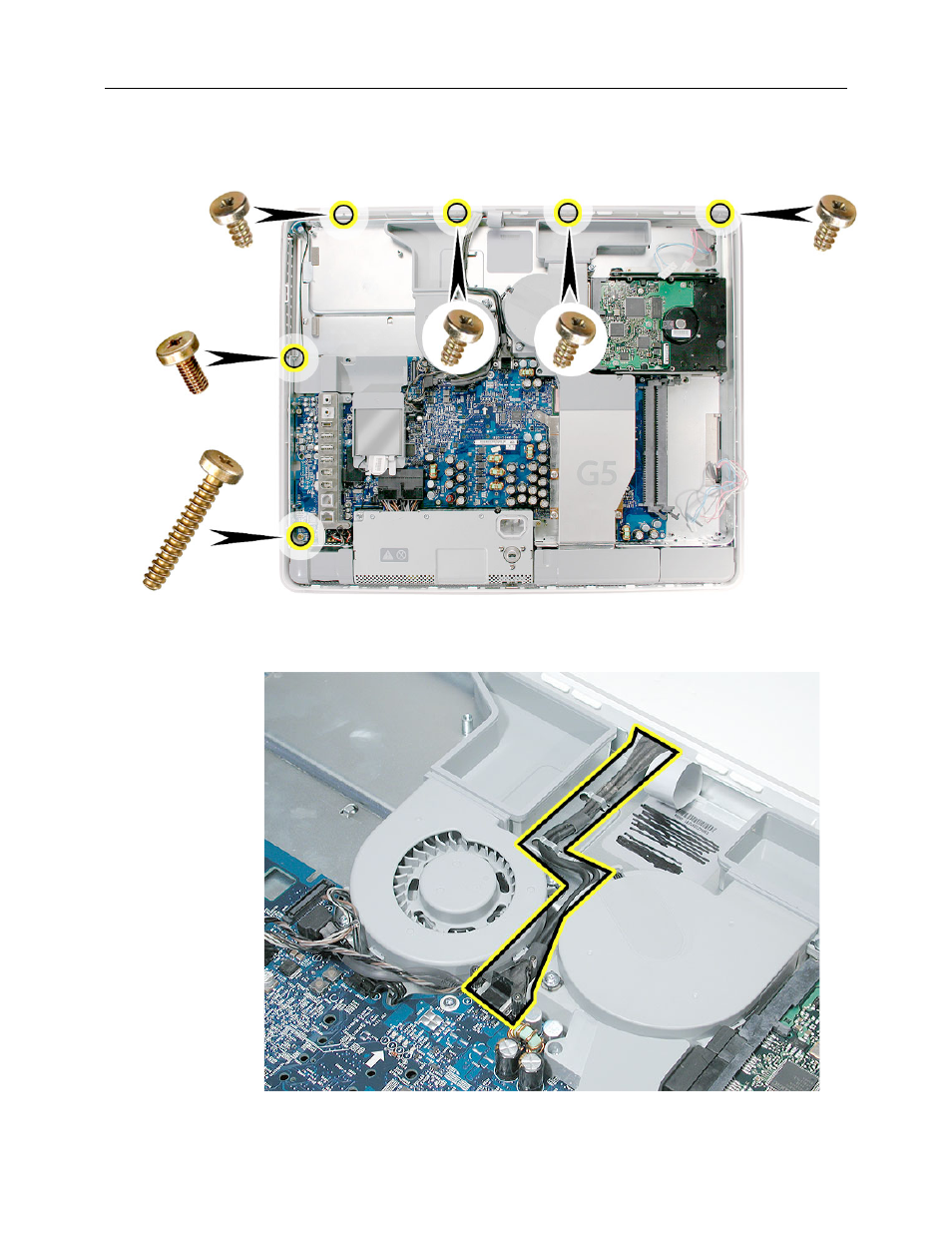

16. Remove the six screws (four identical, short, brass-colored screws in the channel

along the top, and two screws on the left side of the board).

17. Locate the black video cable running alongside the fan.
