Screw matrix for 20-inch – Apple iMac G5, 20-inch User Manual
Page 284

2 -
iMac G5, 20-inch Views

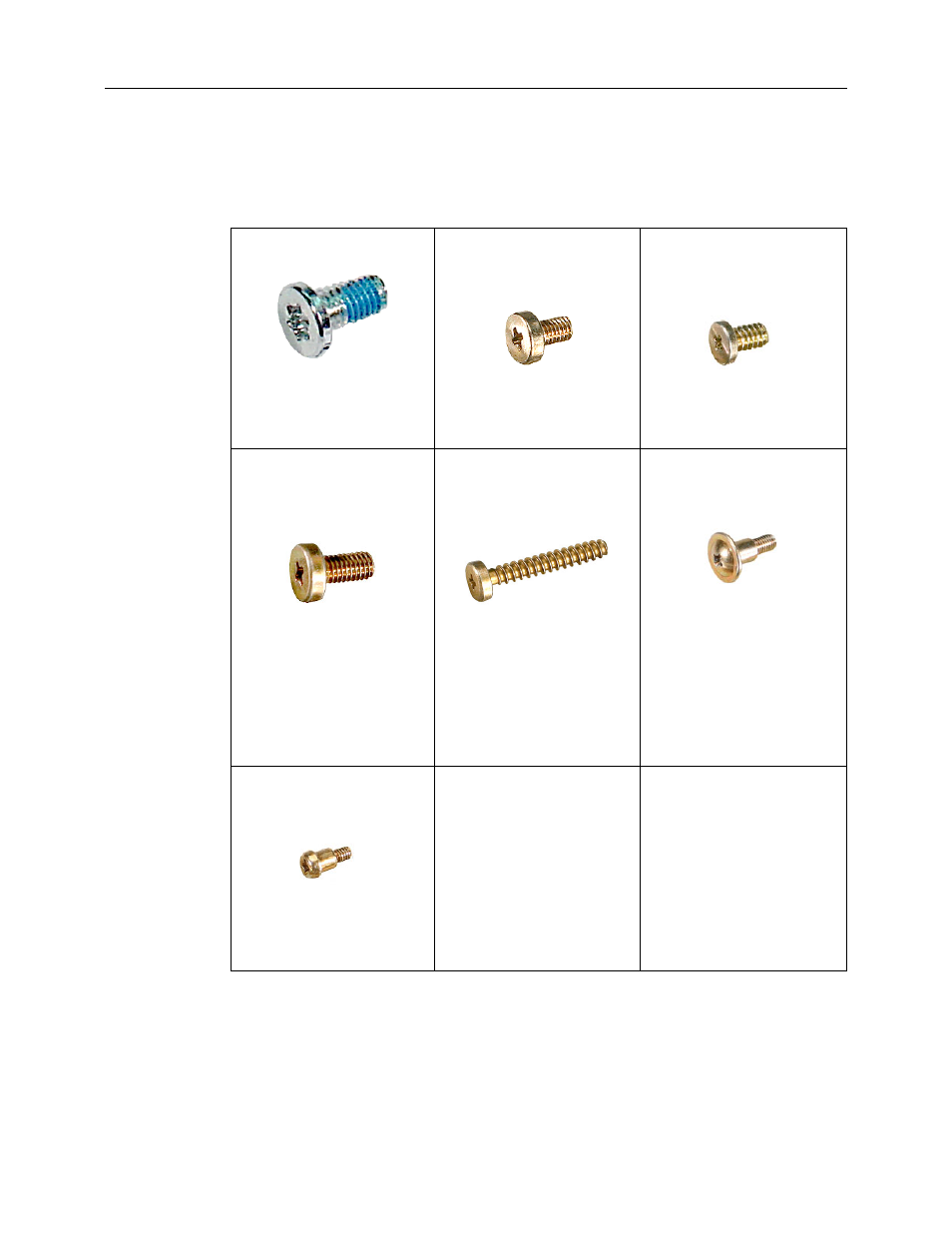

Screw Matrix for 20-inch
Screw Matrix for 20-inch
Note:
These are not to scale.
•
922-6856
922-6663
• Power supply to
midplane (1)
922- 6664
• Midplane to front bezel
(4)
922-6665
• Hard drive upper
bracket to midplane (2)
• Inverter to midplane (2)
• Optical drive to
midplane (4)
922-6667
• Logic board to midplane
to front bezel (3)
• Inverter to midplane to
front bezel (1)
922-6680
• Hard drive bracket to
midplane (1)
922-6659
• Video cable (TMDS) to
midplane (2)
